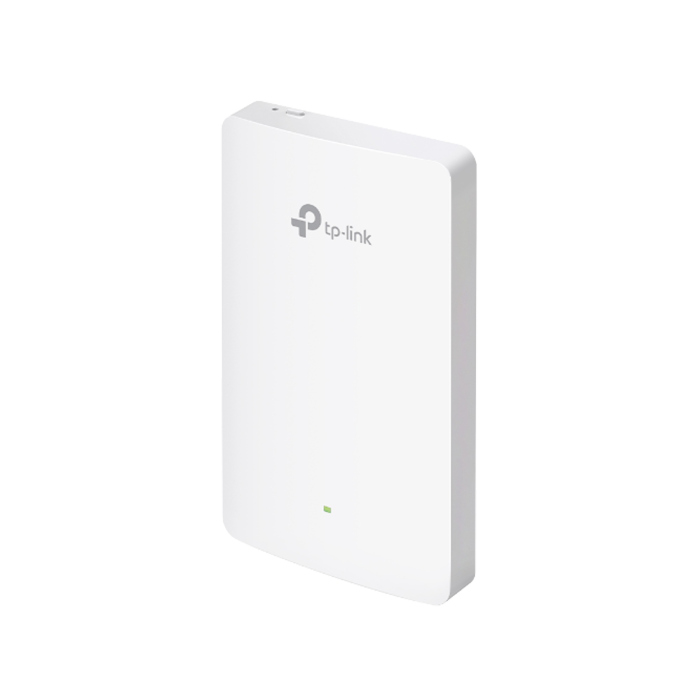

Name: TP-Link AX1800 Wall Plate WiFi 6 Access Point
SKU: EAP615-Wall
Price: 33 KWD
Availability: OutOfStock

Specifications

Model No	TP-Link AX1800 Wall Plate WiFi 6 Access Point
Part No	EAP615-Wall
Interface	Uplink: 1× 10/100/1000 Mbps Ethernet Port Downlink: 3× 10/100/1000 Mbps Ethernet Ports (One port supports PoE OUT. The PoE OUT feature requires 802.3at PoE+ input.The maximum power output for POE pass-through is 13 W (EU version) or 12 W (US version), based on laboratory testing.)
Button	Reset
Power Supply	802.3af/at PoE
Power Consumption	EU: 10W (802.3at PoE, PoE Out off) US: 11.5W (802.3at PoE, PoE Out off)
Antenna Type	2 Dual-Band Antennas • 2.4 GHz: 2× 3 dBi • 5 GHz: 2× 4 dBi
Mounting	Wall Plate Mounting
Wireless Standards	IEEE 802.11ax/ac/n/g/b/a
Frequency	2.4 GHz and 5 GHz
Signal Rate	5 GHz: Up to 1201 Mbps 2.4 GHz: Up to 574 Mbps
Wireless Functions	16 SSIDs (Up to 8 SSIDs on each band) • Enable/Disable Wireless Radio • Automatic Channel Assignment • Transmit Power Control (Adjust Transmit Power on dBm) • QoS(WMM) • Seamless Roaming† • Beamforming • MU-MIMO • Rate Limit • Load Balance • Airtime Fairness • Band Steering • Reboot Schedule • Wireless Schedule • RADIUS Accounting • MAC Authentication • Wireless Statistics • Static IP/Dynamic IP
Transmission Power	CE: < 20 dBm (2.4 GHz, EIRP) < 23 dBm (5 GHz, EIRP) FCC: < 21 dBm (2.4 GHz) < 21 dBm (5 GHz)
System Requirements	Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10
Special Features	Superior WiFi 6 Speeds: Simultaneous 574 Mbps on 2.4 GHz and 1201 Mbps on 5 GHz totals 1775 Mbps Wi-Fi speeds.** High-Performance Connectivity: Guarantee higher network efficiency and lower latency. Four Gigabit Ports: 4 Gigabit Ethernet ports (1× uplink + 3× downlink), with one downlink port supporting PoE pass-through to provide power for wired device.‡ Centralized Management: Integrates into Omada SDN for cloud access and remote management. Secure Guest Network: Along with multiple authentication options (SMS/Facebook Wi-Fi/ Voucher, etc.) and abundant wireless security technologies.† Easy Installation and PoE Support: Easy-to-install design, compatible with 86 mm & EU & US standard junction box, and 802.3af/at PoE support.
Dimension	143 × 86 × 20 mm (5.6 × 3.4 × 0.8 in)
Package contents	AX1800 Wall Plate WiFi 6 Access Point EAP615-Wall Installation Guide Mounting Kits
Warranty	1 Year ( As per Manufacturer Policy )
