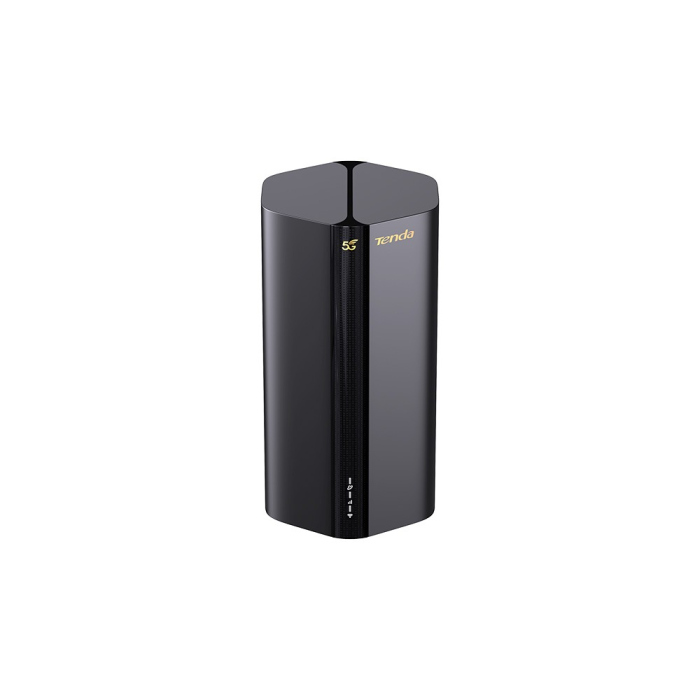

TENDA AX1800 Wi-Fi 6 5G NR Router

7nm, Quad cores,core frequency 2 GHz

5G/4G/3G Multi-Mode, 5G NR SA/NSA, 4G FDD/TDD LTE, 3G WCDMA

Release 15

4.67 Gbps

1.25 Gbps

5G NR (Bands n1, n3, n5, n7, n8, n20, n28, n38, n40, n41, n77, n78)

FDD-LTE (Bands 1, 3, 5, 7, 8, 20, 28, 32)

TD-LTE (Bands 38, 40, 41, 42, 43)

WCDMA (850, 900, 2100 MHz)

SISO,2*2,4*4

SISO,2*2

QPSK, 16QAM,64QAM,256QAM

QPSK, 16QAM,64QAM,256QAM

Wi-Fi 6 (802.11ax) with 2x2 MIMO

574Mbps on 2.4 GHz

1201Mbps on 5 GHz

802.11b/g/n,802.11ac,802.11AX

2.4GHz,5GHz

2.4GHz:up to 20dBm

5GHz: up to 23dBm

1 × 10/100/1000 Mbps LAN/WAN Port

1 × 10/100/1000 Mbps LAN Port

1*Nano SIM（4FF）

1× Power on/off

1× RST hole

1×MESH/WPS

8 × Internal 5G/4G Antennas

2 × Internal Wi-Fi Antennas

2 × TS-9 antennas ports

4G/5G or Wired

Auto-APN

5G SA/NSA dual mode

Auto dial-up

5G Location optimization

5G/4G E-UTRAN New Radio–Dual Connectivity

Roaming

SMS(Send/Receive/Delete)

USSD

Data limted

PIN Management

Broadcast and Hide Wi-Fi name

Priority 5GHz Wi-Fi

Guest network

Wi-Fi schedule

OFDMA

MU-MIMO

WPA2/WPA3,WPA/WPA2,WPA2-PSK,WPA-PSK,WEP

EasyMesh

Parental control

DHCP(DHCP Server and Client)

Virtual Server(UPnP/DMZ/Port Forwarding)

DDNS(DynDns, 88ip)

VPN(PPTP Client/L2TP Client/PPTP Server/IPSEC)

Firewall

QOS

Upgrade firmware from local or OTA

FCC Granted

CE Granted

ROHS Granted

Operating Temperature: 0℃~40℃

Storage Temperature: -30ºC~70ºC

Operating Humidity: 10% ~ 90% RH Non-condensing

Storage Humidity: 5% ~ 90% RH Non-condensing

1 * 5G NR Router

1 * Ethernet cable

1 * Power adapter

1 * User Guide
