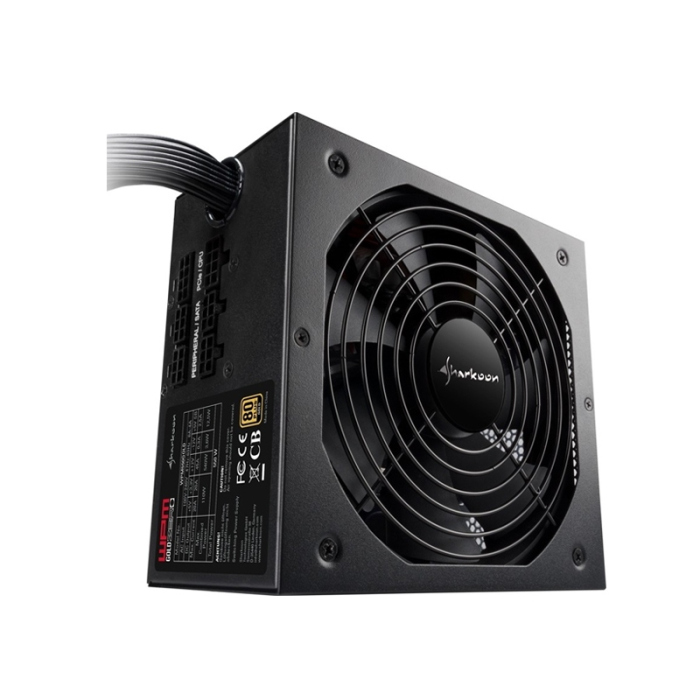

Sharkoon WPM Zero 750W 80+ Gold Semi Modular ATX Power Supply

Model

WPM Zero 750W

Part No

WPM750GOLD

Form Factor

ATX 2.3

Continuous Power

750 W

ErP Compliant

Yes

Active PFC

Yes

Technology

LLC + DC/DC

MTBF

Min. 100,000 Hours

Operating Temperature

0 °C - 40 °C

Standby Power Consumption

Max. 0.3 W

Input Voltage

100 - 240 VA

Input Frequency

47 - 63 Hz

Input Current (110/230 V)

10 A / 5 A

12 V Rail(s)

1

Load 3.3 V

22 A

Load 5 V

22 A

Max. Combined Power 3.3 V + 5 V

120 W

Load 12 V1

62 A

Max. Combined Power 12 V

744 W

Load 5 VSB

2.5 A

Load -12 V

0.3 A

Cable Configuration

Semi-Modular

Flat Cables

Yes

Maximum Cable Length

55 cm

Length of Mainboard Cable

55 cm

Length of CPU Cable

55 cm

Length of PCIe Cable

55 cm

C able Length to First Peripheral

85 cm

24-Pin Mainboard Connector

1

4+4-Pin CPU Connector

2

6+2-Pin PCIe Connector

4

SATA Connector

9

IDE Connector

3

Floppy Connector

1

Fan Size

140 mm

Bearing Type

Sleeve Bearing

Package Contents

WPM Gold Zero 750

Cable Bag

Set of modular cables

Power Cord

Mounting Screws

Manual

Dimensions

150 x 160 x 86 mm

Weight

1.61 Kg

Warranty

1 Year ( As per Manufacturer Policy )
