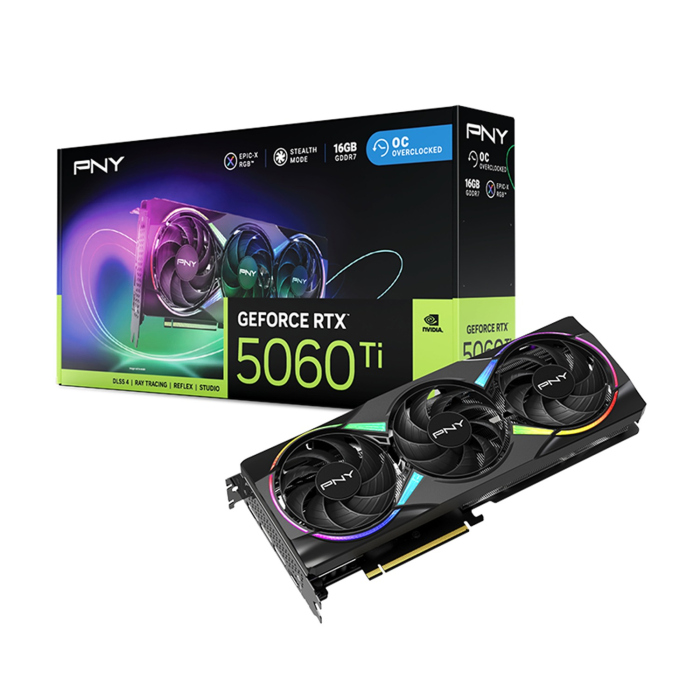

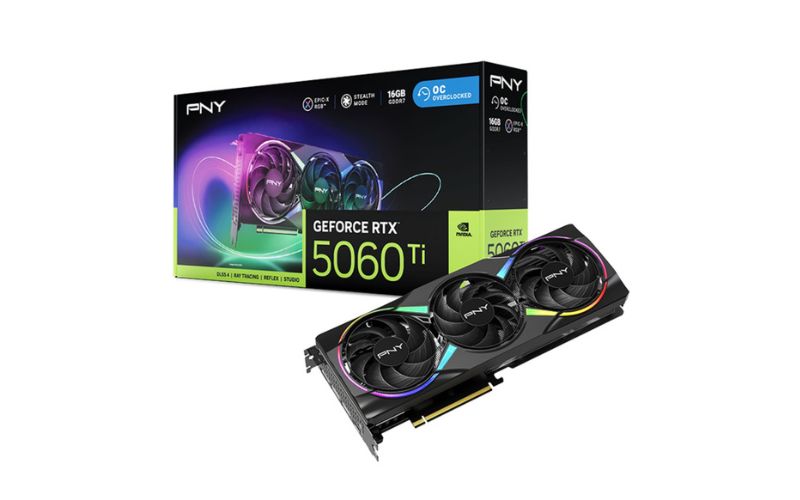

PNY GeForce RTX 5060Ti 16GB EPIC-X RGB™ Stealth Mode OC GDDR7 Graphic Card

Architecture & Performance

The PNY GeForce RTX 5060 Ti is built on NVIDIA’s next‑generation Blackwell architecture, bringing substantial improvements in AI, ray tracing, and efficiency. It features 4,608 CUDA cores, a base clock around 2,407 MHz, and a factory boost clock up to 2,692 MHz in OC variants. PNY Technologies+2B&H Photo Video+2 Coupled with 16 GB of GDDR7 memory operating at 28 Gbps over a 128‑bit bus, it offers a memory bandwidth of about 448 GB/s, making it well suited for high‑resolution textures, complex scenes, and modern games.

Cooling, Design & Features

Depending on the model (EPIC‑X RGB, Stealth Mode, or OC version), the card may come with triple or dual fans, with RGB lighting features in the RGB version and a more understated look in the Stealth variant. PNY Technologies+2B&H Photo Video+2 The card supports PCI Express 5.0 (×8 electrically) and draws up to 180 W under load, requiring a single 8‑pin power connector and a recommended system power supply of around 600 W. PNY Technologies+2Ryans+2 Output options include 3× DisplayPort 2.1b and 1× HDMI 2.1b, enabling up to 8K HDR or high refresh rates in 4K.

Target Audience & Use Cases

This GPU is positioned for gamers and creators who want strong performance in 1440p and reliable 4K capability with DLSS 4, real-time ray tracing, and AI features. It’s ideal for modern AAA titles, content creation workloads, and future-proof designs. PNY Technologies+2Egypt Prices+2 The Stealth Mode version appeals to those who prefer a low-profile, less flashy aesthetic, while the RGB variants offer visual customizations. With its 16 GB VRAM and efficient architecture, this card balances performance, features, and thermal design.

Specification

GPU Architecture: NVIDIA “Blackwell 2.0” – 4608 CUDA cores. PNY Technologies+1

Memory: 16 GB GDDR7 on a 128‑bit memory interface, 28 Gbps memory speed, ~448 GB/s bandwidth. LASystems+2PNY Technologies+2

Clock Speeds: Base ~2407 MHz, Boost up to ~2692 MHz (OC variant). electrotrad.com

Power & Interface: TDP ~180 W, uses 1× 8‑pin power connector, PCI Express 5.0 x8. PNY Technologies+1

Outputs: 3× DisplayPort 2.1b + 1× HDMI 2.1b supporting up to 8K HDR. LASystems+1

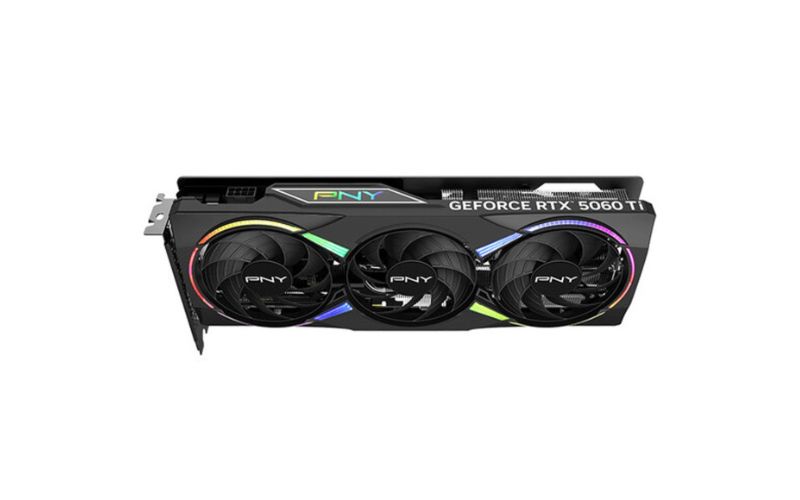

Size & Cooling: Triple‑fan “EPIC‑X RGB” cooler, dual‑slot width, full‑sized card (~300 mm length). talospc.com+1
