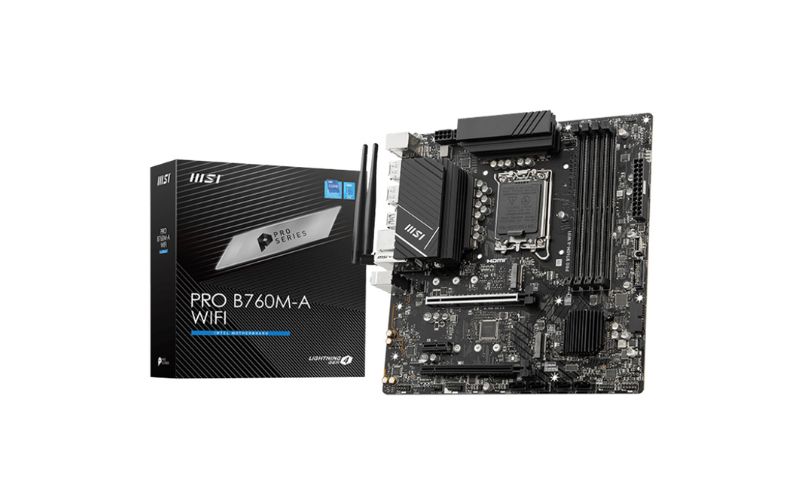

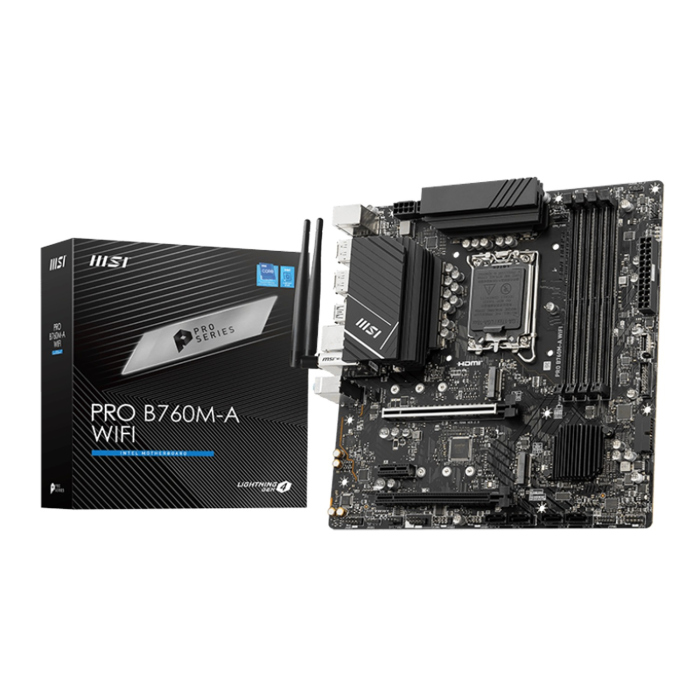

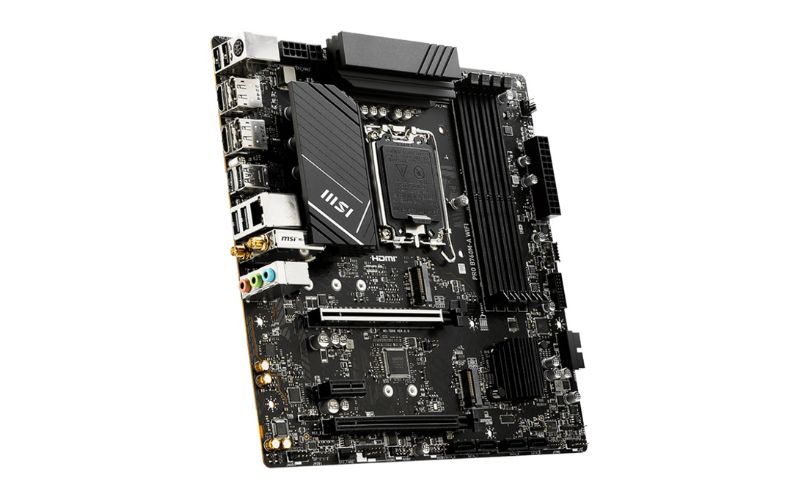

Reliable and Efficient Performance for Intel SystemsThe MSI PRO B760M-A WIFI motherboard is designed to offer stable and powerful performance for users building with Intel’s latest 12th and 13th Gen processors, utilizing the LGA1700 socket. Built on the Intel B760 chipset, this Micro-ATX motherboard supports high-speed DDR5 memory, ensuring faster data processing and multitasking efficiency. It is ideal for professionals and mainstream users who need a dependable platform for everyday computing, office work, and light content creation. |  |
 | Advanced Connectivity and Networking FeaturesEquipped with WiFi 6E and 2.5G LAN, the PRO B760M-A WIFI ensures ultra-fast, low-latency internet connections for smooth streaming, gaming, and remote work. The motherboard also supports PCIe 4.0 for enhanced performance with compatible GPUs and NVMe SSDs. Multiple USB ports, including USB 3.2 Gen 2x2 Type-C, provide versatile and high-speed connectivity options for the latest peripherals. Durable Design with Effective CoolingMSI’s PRO B760M-A WIFI features a solid 6+1+1 power phase design for stable and efficient power delivery, ensuring reliable operation under heavy workloads. The motherboard’s extended heatsink helps maintain optimal temperatures, protecting components during intense use. With MSI’s intuitive BIOS and robust build quality, this board is a smart choice for users seeking a balance of performance, connectivity, and reliability in a compact Micro-ATX form factor. |
SpecificationsModel: MSI PRO B760M-A WIFI (911-7D99-057) Form Factor: Micro-ATX CPU Support: Intel 13th & 12th Gen Processors (LGA1700 Socket) Chipset: Intel B760 Memory Support: 4 × DDR5 DIMM slots, up to 128GB, Dual Channel Expansion Slots: 1 × PCIe 4.0 x16, 1 × PCIe 3.0 x1 Storage: 2 × M.2 (PCIe 4.0 x4), 4 × SATA 6Gb/s Networking: 2.5G LAN + WiFi 6E + Bluetooth 5.3 Audio: Realtek ALC897 / Audio Boost USB Ports: USB 3.2 Gen 2x2 Type-C, USB 3.2 Gen 2 Type-A, USB 3.2 Gen 1, USB 2.0 Display Outputs: HDMI 2.0, DisplayPort 1.4 Power Design: 6+1+1 Power Phases Cooling: Extended Heatsink Design RGB Support: MSI Mystic Light (Header) Operating System Support: Windows 11, Windows 10 64-bit |  |
| Model No | PRO B760M-A WIFI |
| Part No | 911-7D99-057 |
| Chipset | Intel B760 |
| Form Factor | micro-ATX |
| Socket Compatibility | LGA 1700 (Supports Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron Processors) |
| Wireless & Bluetooth | Wi-Fi 6E, Bluetooth 5.3 |
| Lighting | RGB and ARGB headers, EZ Debug LED indicators |
| Memory Type | DDR5 |
| Memory Compatibility | 4 × DDR5 DIMM slots, up to 256 GB total capacity Supports dual-channel, XMP, and memory overclocking up to DDR5-6800 MHz (OC) |
| Storage Compatibility | 2 × M.2 (PCIe Gen4 x4) slots 4 × SATA 6 Gb/s ports Supports RAID 0 / 1 for NVMe |

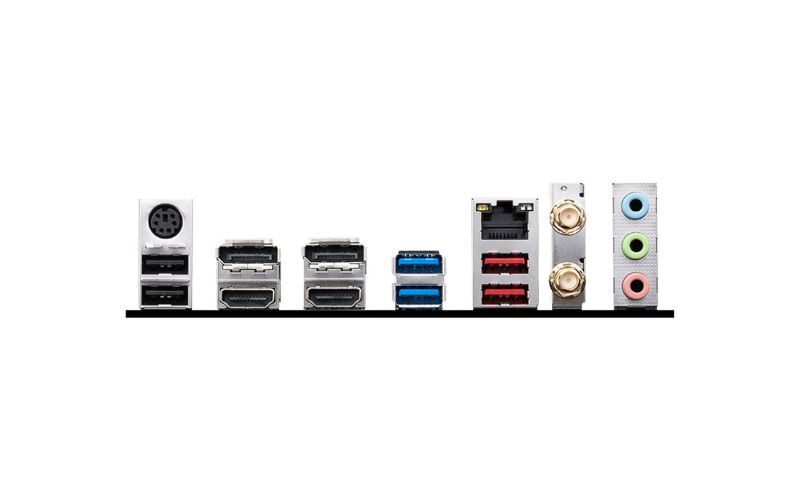

| Back Panel I/O Ports | 2 × HDMI, 2 × DisplayPort, USB Type-C, multiple USB Type-A ports (various speeds), 2.5G LAN port, Wi-Fi antenna connectors, audio jacks, BIOS Flash and Clear CMOS buttons |
| USB Ports Front / Internal Support | Internal headers for USB 2.0, USB 3.2 Gen1, USB 3.2 Gen2, and front-panel USB-C |
| Expansion Slots | 1 × PCIe 4.0 ×16, 1 × PCIe 3.0 ×1 |
| Audio | Realtek ALC897, 7.1-channel high-definition audio |
| Internal I/O Connectors | 24-pin ATX main power, 8-pin + 4-pin CPU power, fan and pump headers, RGB / ARGB headers, front panel, TPM header, USB headers, front audio |
| Special Features | 12+1 Duet Rail Power System with P-PAK, Extended Heatsinks, M.2 Shield Frozr, Steel Armor PCIe Slot, Core Boost, Memory Boost, PCIe 4.0 and Gen4 M.2 Support, 2.5G LAN, EZ Debug LED |
| Package Content | Motherboard, Wi-Fi antennas, SATA cables, M.2 screws/clips, I/O shield, user manual, warranty card |
| Product Size (Dimension) | 244 mm × 244 mm |
| Product Weight | Not specified |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
