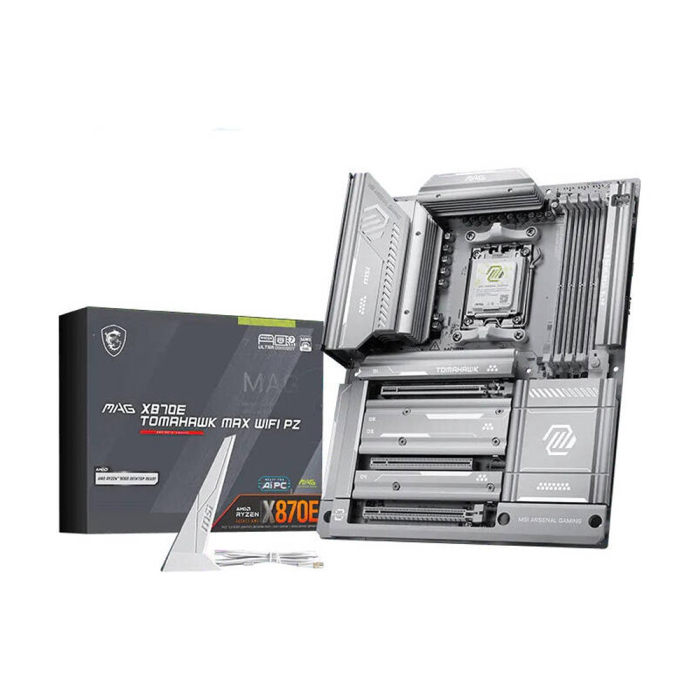

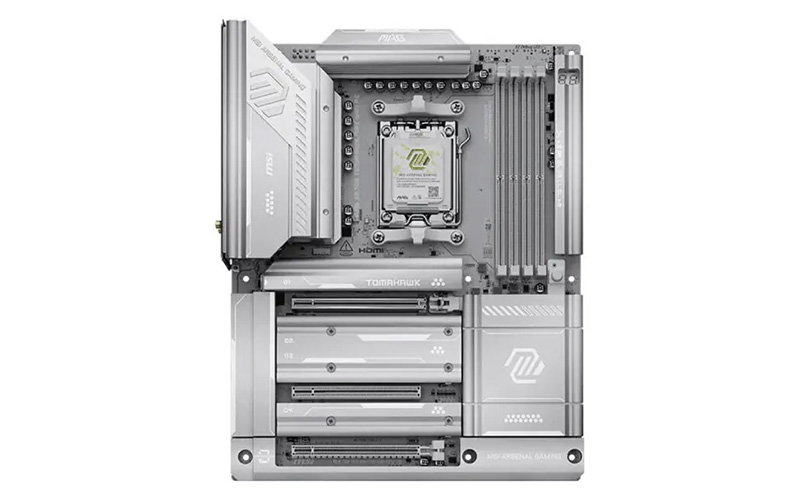

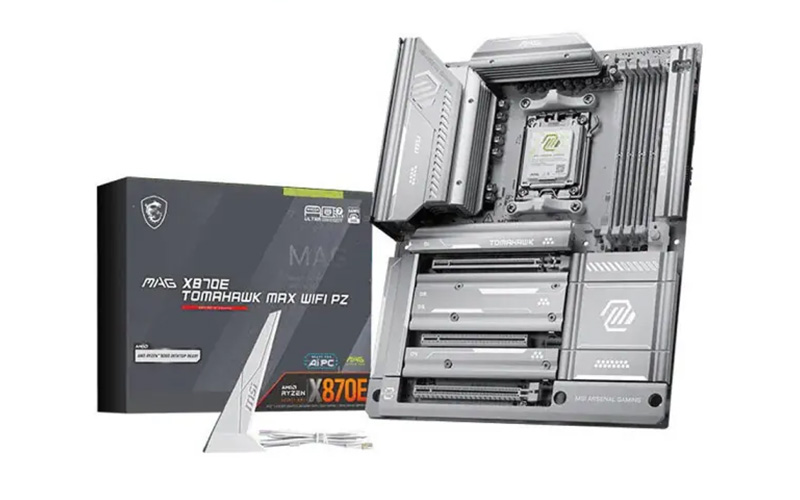

High-End AM5 Gaming Motherboard with WiFi 7 and PCIe 5.0The MSI MAG X870E Tomahawk MAX WIFI PZ DDR5 is a premium ATX motherboard built for AMD’s latest Ryzen 7000, 8000, and 9000 series processors on the AM5 platform. It sits in MSI’s upper “MAG” tier, offering a strong balance between enthusiast-grade performance, modern connectivity, and a more practical design compared to ultra-flagship boards. The “PZ” (Project Zero) concept also emphasizes cleaner cable management and a more refined build layout for modern PC setups. |  |
 | Strong Power Delivery and Next-Gen Performance SupportThis Gaming motherboard is powered by the AMD X870E chipset and features a 14+2+1 Duet Rail power system with high-current stages, designed to handle high-end CPUs like Ryzen 9 and X3D processors with stability under heavy load. It supports DDR5 memory up to 256GB across four DIMM slots, with very high overclocking potential reaching 8400+ MT/s (OC) depending on configuration. For graphics and storage, it includes PCIe 5.0 x16 for GPUs and multiple PCIe 5.0 M.2 slots, enabling cutting-edge SSD and GPU performance.
Advanced Connectivity with WiFi 7 and Creator-Grade I/OThe X870E Tomahawk MAX WIFI PZ is equipped with WiFi 7, 5G LAN, and USB4 connectivity, ensuring extremely fast networking and data transfer for gaming, streaming, and productivity. It also includes high-speed USB Type-C ports and modern display outputs such as HDMI 2.1 with support for high resolutions, making it suitable for both GPU-driven and integrated-graphics setups. MSI also adds strong cooling features like extended heatsinks and M.2 thermal protection to maintain stability during long gaming sessions. |
Key Specifications
|  |
| Model No | MAG X870E Tomahawk Max WIFI PZ |
| Part No | 911-7E84-004 |
| Chipset | AMD X870E |
| Form Factor | ATX (Back-Connect Design) |
| Socket Compatibility | AM5 (AMD Ryzen 7000 / 8000 / 9000 Series Processors) |
| Wireless & Bluetooth | Wi-Fi 7, Bluetooth 5.4 |
| LAN | Realtek 5G LAN |
| Memroy Type | DDR5 |
| Memory Compatibility | 4× DDR5 UDIMM Slots, Up to 256GB, Supports DDR5 8400+ MT/s (OC), AMD EXPO |
| Lighting | RGB & ARGB Header Support, EZ Debug LED |
| Storage Compatibility | 4× M.2 Slots (2× PCIe 5.0 x4, 2× PCIe 4.0 x4), 4× SATA 6Gb/s |

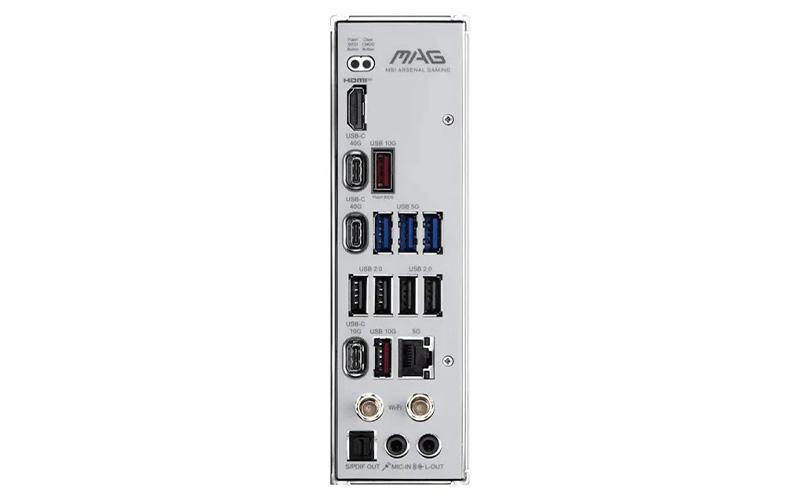

| Back Panel I/O Ports | 2× USB4 Type-C (40Gbps), 1× USB 10Gbps Type-C, USB 10Gbps Type-A, USB 5Gbps Type-A, USB 2.0, HDMI 2.1, 5G LAN, Wi-Fi Antenna Connectors, Optical S/PDIF, Audio Jacks, Clear CMOS & Flash BIOS Buttons |
| USB Ports Front (Support) | USB 20Gbps Type-C Header, USB 5Gbps Headers, USB 2.0 Headers |
| Expansion Slots | 1× PCIe 5.0 x16, 1× PCIe 4.0 x4, 1× PCIe 3.0 x1 |
| Audio | Realtek ALC4080 7.1 Channel HD Audio |
| Internal I/O Connectors | CPU Fan Header, Pump/System Fan Headers, RGB Headers, ARGB Headers, TPM Header, Front Audio, USB Headers |
| Special Features | PCIe 5.0 GPU & SSD Support, USB4 Connectivity, EZ DIY Design, EZ M.2 Shield Frozr II, 14+2+1 Duet Rail Power System, AI LAN Manager, Flash BIOS, Back-Connect PCB Design |
| Package Content | Motherboard, Wi-Fi Antenna, SATA Cable(s), EZ M.2 Clips, User Manual |
| Product Size (Dimensions) | 304.8 × 243.84 mm |
| Product Weight | Approx. 1.5–1.8 kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
