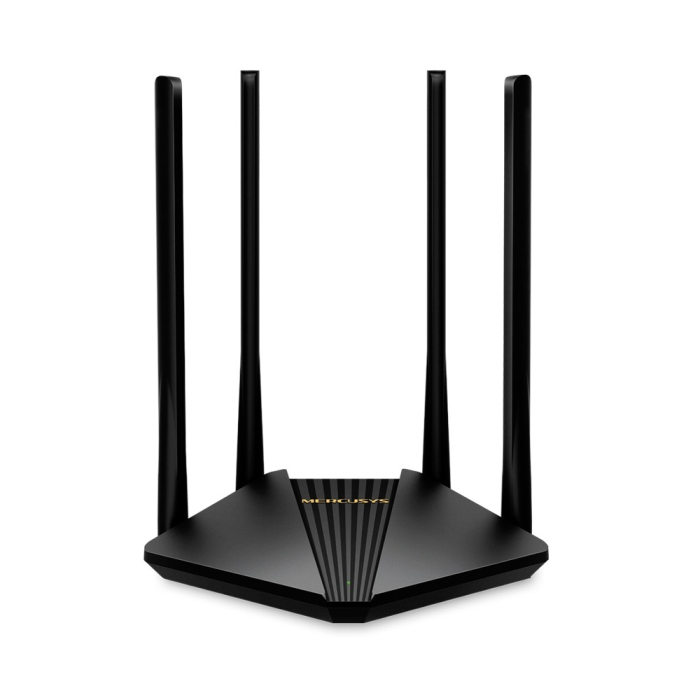

Mercusys AC1200 Wireless Dual Band Gigabit Router

Model No

Mercusys AC1200 Wireless Dual Band Gigabit Router

Part No

MR30G

Wireless Standards

IEEE 802.11ac/n/a 5 GHz, IEEE 802.11b/g/n 2.4 GHz

WiFi Speeds

867 Mbps (5 GHz) + 300 Mbps (2.4 GHz), compatible
with 11ac/a/b/g/n Wi-Fi standards

Reception Sensitivity

11g 6Mbps: -96dBm

11g 54Mbps: -78dBm

11n HT40 MCS7: -71dBm

11n HT20 MCS7: -74dBm

11a 6Mbps: -97dBm

11a 54Mbps: -79dBm

11ac VHT20 MCS8: -74dBm

11ac VHT40 MCS9: -70dBm

11ac VHT80 MCS9: -65dBm

Transmission Power

2.4 GHz < 20dBm (EIRP)

5 GHz < 23dBm (EIRP)

Wireless Security

WPA-PSK / WPA2-PSK

Interfaces

1× Gigabit WAN Port

2× Gigabit LAN Ports

Button

Reset/WPS Button

Antenna Type

4× 5 dBi Fixed Omni-Directional Antennas

WAN Type

Dynamic IP/Static IP/PPPoE/L2TP/PPTP

Management

Access Control

Local Management

Remote Management

DHCP

Server, DHCP Client List

Firewall Security

SPI Firewall, IP and MAC Address Binding

Guest Network

2.4 GHz Guest Network

5 GHz Guest Network

Package Contents

AC1200 Wireless Dual Band Gigabit Router (MR30G)

Power Adapter

Quick Installation Guide

RJ45 Ethernet Cable

Environment

Operating Temperature: 0°C~40°C (32°F~104°F)

Operating Humidity: 10%~90% Non-Condensing

Storage Humidity: 5%~90% Non-Condensing

Dimensions

6.3 × 5.0 × 1.5 in

(159.7 × 125.9 × 37.1 mm)

Warranty

1 Year (As per Manufacturer)
