UPGRADED MODULARITY

UNI FAN SL V2 revised its interlocking style to connect up to 6 fans in two clusters to a single controller port, making cable management simpler.

Extension Cable

With the new 18 cm extension cable, the ability to bridge two clusters of fans to create a 3+3 daisy-chained cluster is offered. These 6 fans can then be connected to a single port on the SL V2 UNI HUB controller. The new daisy-chaining solution reduces the number of cables needing to be managed at the back of the case and enables new lighting effects that can be continuous between the two bridged clusters.

Plug-in Power Cable Module

The cable module is designed to plug in and sit flush with the fan frame, which doesn’t require extra space for the module and reduces clearance issues with radiator fittings.

Removable Key

The interlocking keys on each fan are removable to improve compatibility with radiator fittings.

SIMPLE CONNECTION WITH CONTROLLER

The all-new cable module and UNI HUB controller simplify cable management and provide efficient power to the fans

Improved Performance

Thanks to a slight increase to a 28mm thick frame, the SL120 V2 features a 10% airflow optimization compared to the SL120 V1, which creates a great balance of airflow and static pressure.

Only One Cable

Combining both the power cable and the lighting cable into a single one, the cable module uses a 7-pin connector to connect to the controller, efficiently reducing the number of cables cluttering the PC build.

Direct To Motherboard

The single pack includes a cable module that features a 4-PIN PWM and a 3-PIN SM-type ARGB cable (3P to 3P 5V ARGB cable is included) to connect directly to the motherboard.

Specifications

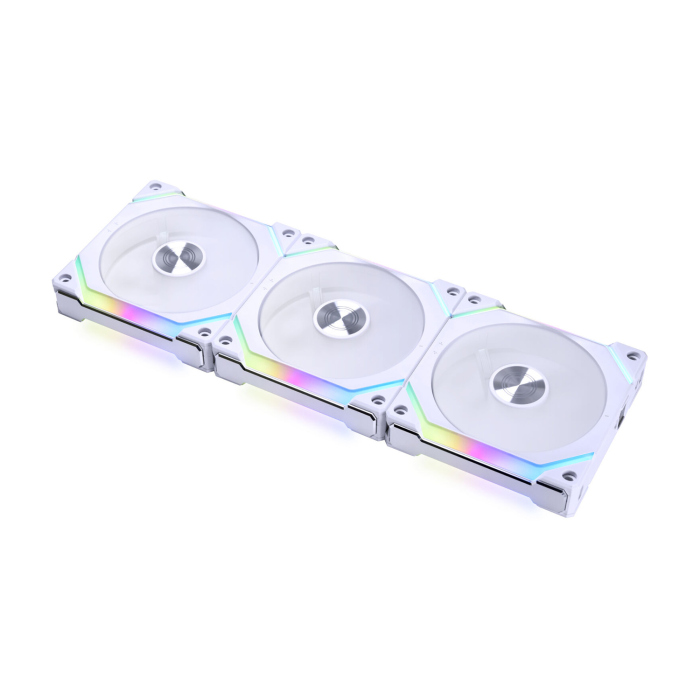

Model No	LIAN LI UNI FAN SL120 V2 RGB 3-in-1 Pack Fan With ARGB Controller
Part No	UF-SL120V2-3W
Color	White
Lighting	ARGB
Material	PBT/PC/Aluminum)
Fan Dimension	120 X 120 X 28 (mm)
Rated Voltage	DC 12V (FAN) & 5V (LED)
Fan Speed	0, 250~2000 RPM
Max. Air Pressure	2.59 mmH2O (Maximum)
Max. Airflow	64.5 CFM (Maximum)
Acoustic Noise	29.2 dB(A) Max
Locked Current	0（Automatic Protection）
Bearing Type	Fluid Dynamic Bearing (FDB)
Start-Up Voltage	≦5V
Input Current	0.17A
Input Power	2.04W
Connector Type	4 × 7-PIN (Power Cable) 2 × Extension Cable
Controller	Yes
No. Of Fans	3
Special Features	Improved daisy chain design to connect 2 clusters of fans. SL120 V2 fan frame thickness is 28mm to provide 10% improved airflow compared to V1. Removable interlocking keys to provide better radiator clearance. Start/stop fan RPM support for a quieter environment. Smoother side lighting for a better aesthetic. Only one cable is required for each fan cluster when using the provided new UNI HUB to control lighting effects via L-Connect 3.
Warranty	1 Year ( As per Manufacturer Policy )
