Kingston RAM 32GB DDR5 4800MT/s Desktop Memory

KINGSTON DDR5 DESKTOP MEMORY

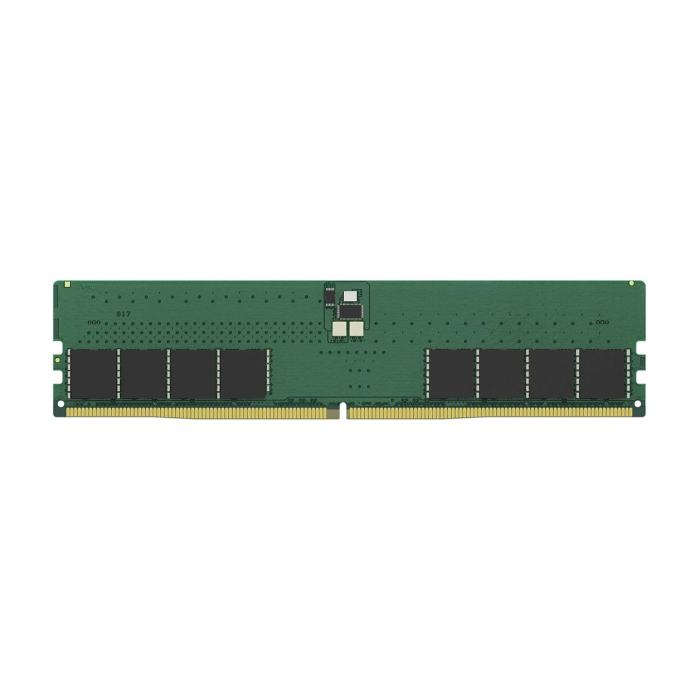

This document describes ValueRAM's KVR48U40BD8-32 is a 4G x 64-bit (32GB) DDR5-4800 CL40 SDRAM (Synchronous DRAM), 2Rx8, memory module, based on sixteen 2G x 8-bit FBGA components. The SPD is programmed to JEDEC standard latency DDR5-4800 timing of 40-39-39 at 1.1V. Each 288-pin DIMM uses gold contact fingers. The electrical and mechanical specifications are as follows:

• Power Supply: VDD = 1.1V Typical
• VDDQ = 1.1V Typical
• VPP = 1.8V Typical
• VDDSPD = 1.8V to 2.0V
• On-Die ECC
• PCB:  Height 1.23” (31.25mm)
• RoHS Compliant and Halogen-Free

KINGSTON DDR5 DESKTOP MEMORY

• All ValueRAM memory is 100% tested
• ValueRAM is ideal for system builders and those who buy memory by specification
• Please always check the compatibility with manufacturer before purchasing this DRAM module
• Designed and tested to meet JEDEC industry standards
• All Kingston products are backed by the support of a company with a 30+ year track record of product reliability and a commitment to our customers
