Panoramic Views

No corner pillar. The Y60 features a 3-piece panoramic tempered glass design for the ultimate photo and display potential. See your build the way it was meant to be seen from the left or right side of your desk with a simple turn.

Exclusively Vertical GPU Mounted

Why would you want to see your graphics card any other way?

Cold Floor Cooling

Eliminate hot spots with sweeping lateral vents from fans tastefully tucked into the basement of the Y60.

Included PCIE 4.0 Riser Cable

A protective riser cable canopy integrates beautifully into the case, allowing for half-height PCIE cards behind the throne of the vertical graphics card. The protective shroud is the first of its kind, made specifically for the Y60.

Antechamber Construction

Segment cables from thermal components and turn your PC into a work of art

Included Fans

The three pre-installed Flow FE12 fans with fluid-dynamic bearings provide whisper-quiet operation.

Specifications

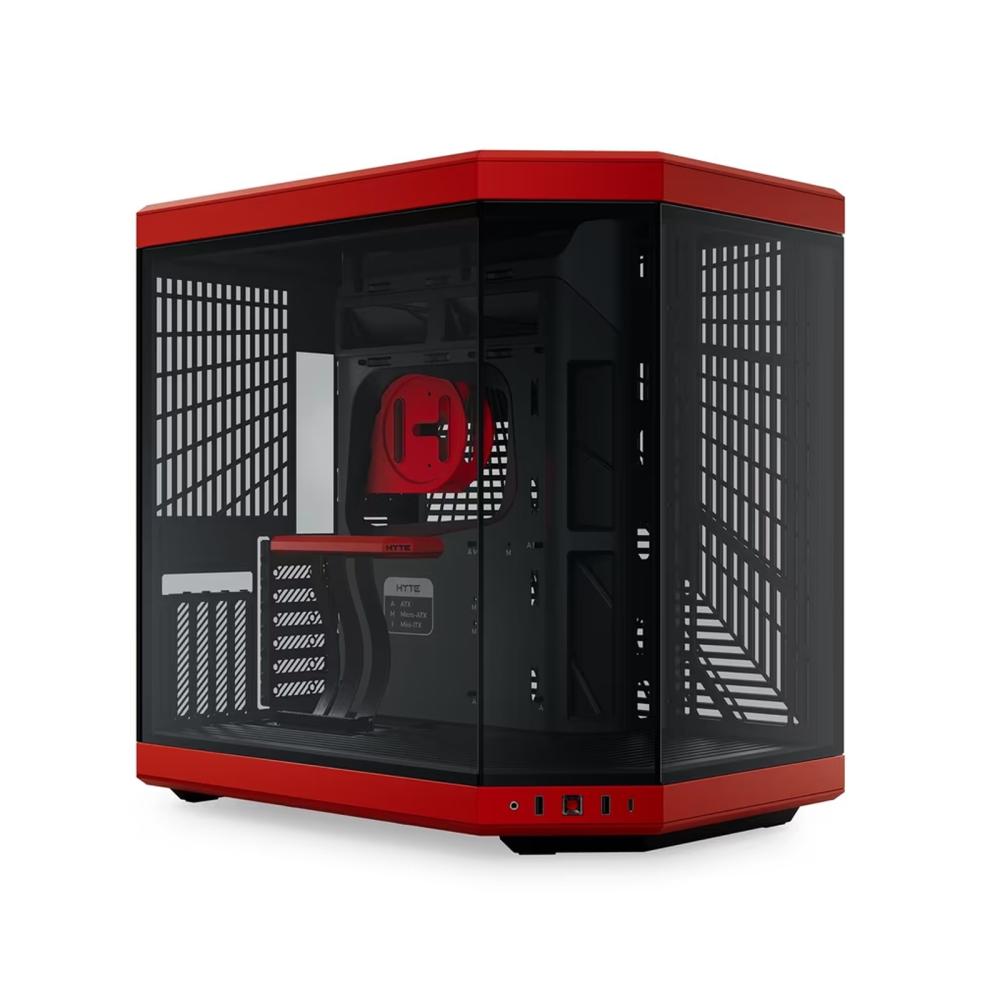

Model No	HYTE Y70 Mid Tower Two Panel Front & Left Side Tempered Glass Case without Fan
Part No	CS-HYTE-Y70-BR
Color	Black/Red
Case Type	Dual Chamber Mid-Tower ATX Case
Case Material	Metal, Tempered Glass
Motherboard Support	ITX, mATX, ATX, EATX
Pre-installed Fans	No Fans
Additional Fan Support	Top Fans 3x 120 mm / 2x 140 mm Rear Fans 1x 120/140 mm Side Fans 3x 120 mm / 2x 140 mm Bottom Fans 3x 120 mm / 2x 140 mm @ 32 mm thick
Radiator Support	Top Radiator 120-360, 140-280 @ 68 mm thick Rear Radiator 1x 120/140 mm Side Radiator 120-360, 140-280 @ 125 mm thick
SSD/HDD Support	2x 3.5" HDD or 4x 2.5" SSD
I/O Ports	1x USB-C 3.2 Gen 2, 2x USB-A 3.2 Gen 1, 1x 3.5mm Audio/Mic Combo Jack
CPU Cooler Limitation	Max CPU Cooler Height: 180 mm
VGA Limitation	Max Video Card Thickness: 105 mm \| Max Video Card Length 422 mm
PSU Limitation	Max PSU Length 235 mm
Dust Filters	Top, Side, Bottom
Product Size ( Dimension )	470 x 320 x 470 mm
Package Content	Case & Cables
Warranty	1 Year ( As per Manufacturer Policy )

Reviews

HYTE Y70 Mid Tower Two Panel Front & Left Side Tempered Glass Case without Fan - Black/Red
