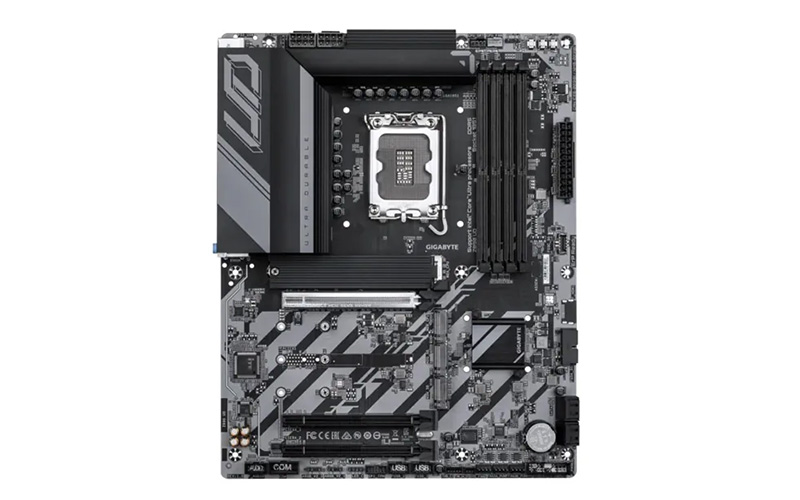

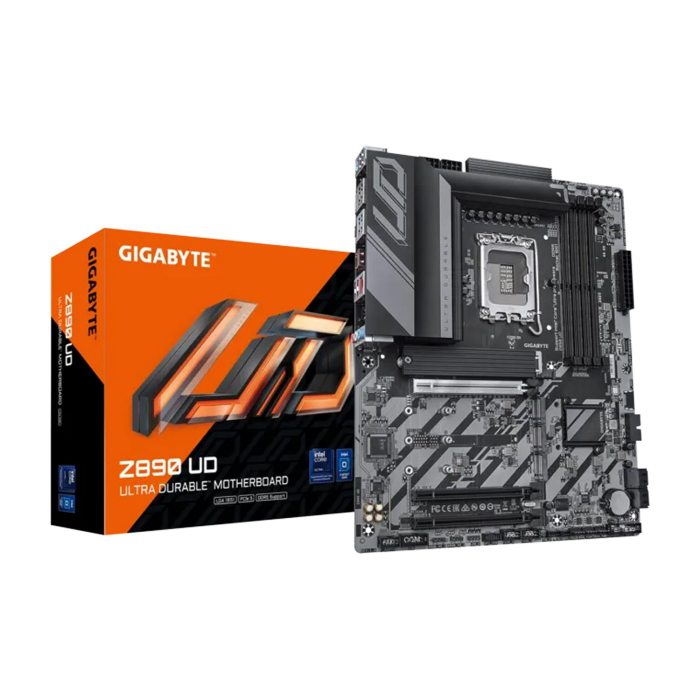

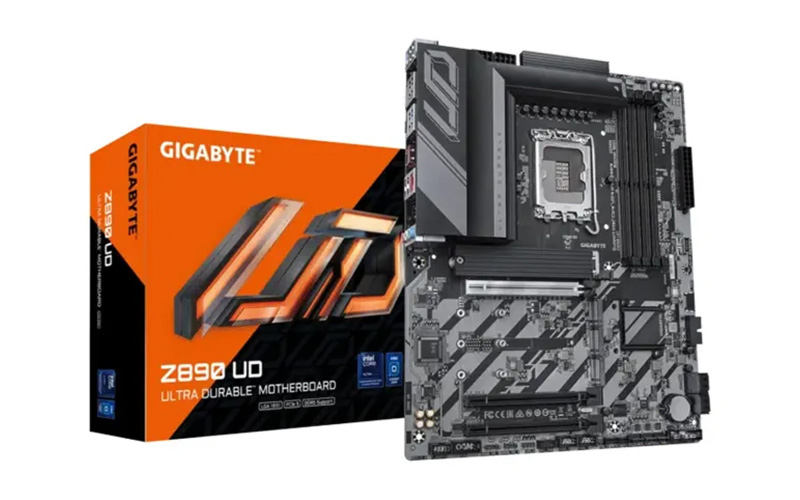

Next-Generation Intel Platform with DDR5 and PCIe 5.0The Gigabyte Intel Gaming Motherboard Z890 UD DDR5 is built on the latest Intel Z890 chipset, supporting Intel Core Ultra (Series 2) processors via the LGA1851 socket. It delivers cutting-edge performance with DDR5 memory support reaching up to extreme overclocked speeds around 9200 MT/s, ensuring high bandwidth and system responsiveness. With PCIe 5.0 support for both graphics and storage, it provides a future-ready platform for high-end gaming and productivity builds. |  |
 | Robust Power Design with Advanced Thermal ManagementEquipped with a 12+1+2 phase digital VRM design using high-quality components, the motherboard ensures stable power delivery even under demanding workloads. It features advanced thermal solutions such as full-coverage VRM heatsinks and M.2 Thermal Guard to maintain optimal temperatures. Smart Fan 6 technology enables precise cooling control, helping to balance performance and noise efficiently.
High-Speed Connectivity and DIY-Friendly FeaturesThe Z890 UD offers modern connectivity including 2.5GbE LAN and USB4 Type-C with up to 40Gb/s transfer speeds, along with DisplayPort support for high-resolution output. It includes multiple M.2 slots (including PCIe 5.0) for ultra-fast storage and several PCIe slots for expansion. Builder-friendly features like Q-Flash Plus, EZ-Latch design, and debug LEDs simplify installation and upgrades, making it suitable for both beginners and advanced users. |
Key Specifications
|  |
| Model No | Gigabyte Intel Z890 UD DDR5 Gaming Motherboard |
| Part No | Z890 UD |
| Chipset | Intel Z890 |
| Form Factor | ATX |
| Socket Compatibility | Intel LGA1851 (Intel Core Ultra Series 2 processors) |
| Wireless & Bluetooth | Not available (no built-in WiFi/Bluetooth) |
| LAN | 2.5GbE LAN |
| Memory Type | DDR5 |
| Memory Compatibility | 4 × DIMM slotsDual Channel DDR5Supports XMP memory profiles and high-frequency overclocking (up to very high OC speeds depending on CPU/RAM) |
| Lighting | RGB Fusion support (RGB & ARGB headers for external lighting) |
| Storage Compatibility | • Up to 4 × M.2 slots (PCIe Gen4/Gen5 depending on CPU lane usage)• SATA 6Gb/s ports (multi-drive support for HDD/SSD) |

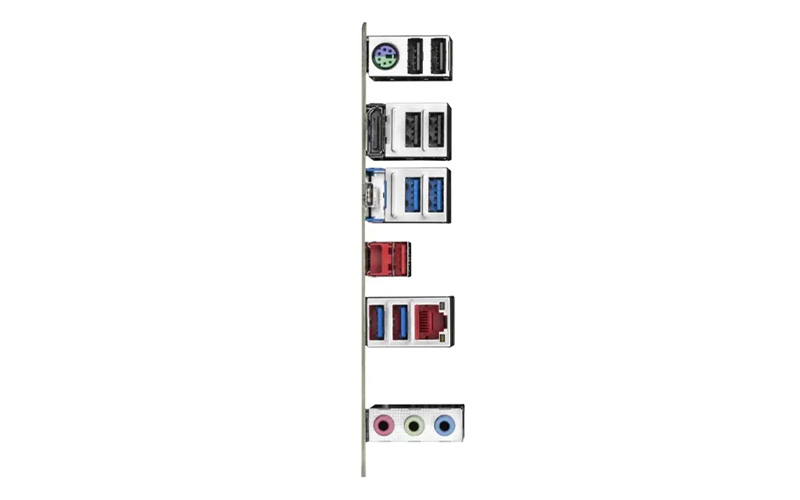

| Back Panel I/O Ports | • USB4 Type-C (up to 40Gbps with Display support)• USB 3.2 Gen2 / Gen1 ports• USB 2.0 ports• HDMI / Display output (CPU dependent)• 2.5GbE LAN port• Audio jacks |
| USB Ports Front (Support) | • Front USB-C header• USB 3.2 Gen1 headers• USB 2.0 headers |
| Expansion Slots | • 1 × PCIe 5.0 x16 slot• Additional PCIe slots (chipset lanes for expansion cards) |
| Audio | High Definition Audio (7.1-channel support) with premium capacitors |
| Internal I/O Connectors | • CPU fan / pump / system fan headers• RGB / ARGB headers• Front panel connectors• USB headers• SATA ports• Debug / control headers |
| Special Features | • 12+1+2 phase digital VRM design• PCIe EZ-Latch (tool-free GPU removal)• Smart Fan 6 thermal control system• Q-Flash Plus BIOS update without CPU/RAM/GPU• Advanced thermal armor for VRM & M.2 cooling• USB4 high-speed connectivity |
| Package Content | Motherboard, SATA cables, I/O shield, user manual |
| Product Size (Dimensions) | ATX standard: 30.5 × 24.4 cm |
| Product Weight | Not specified |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
