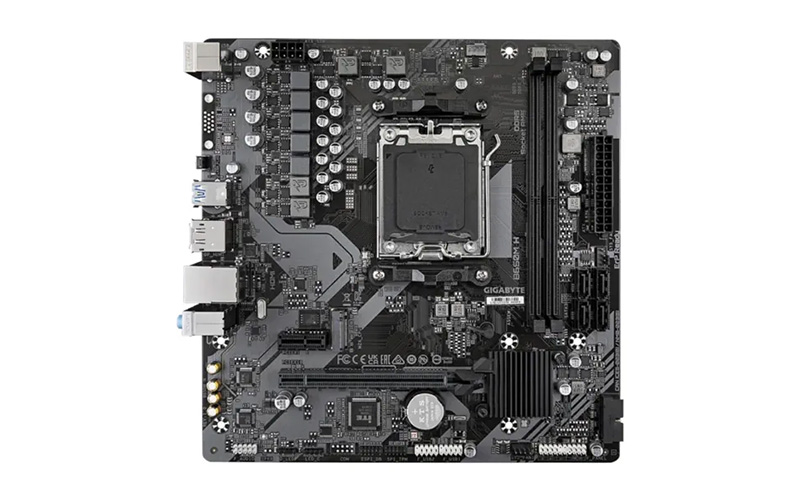

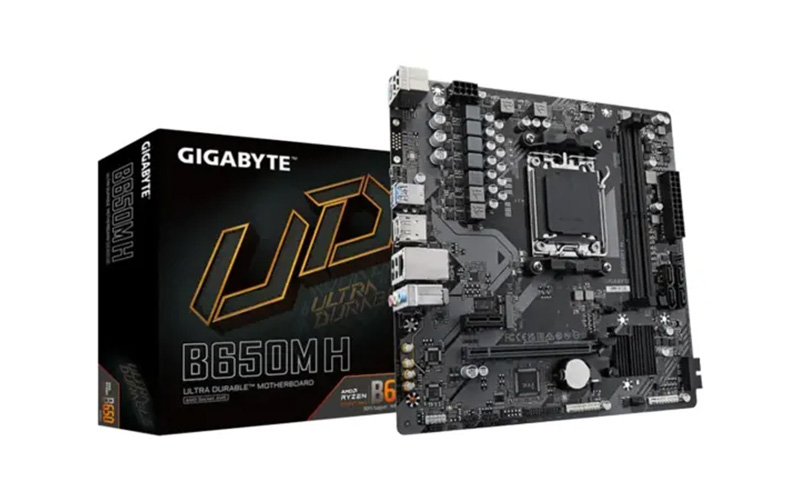

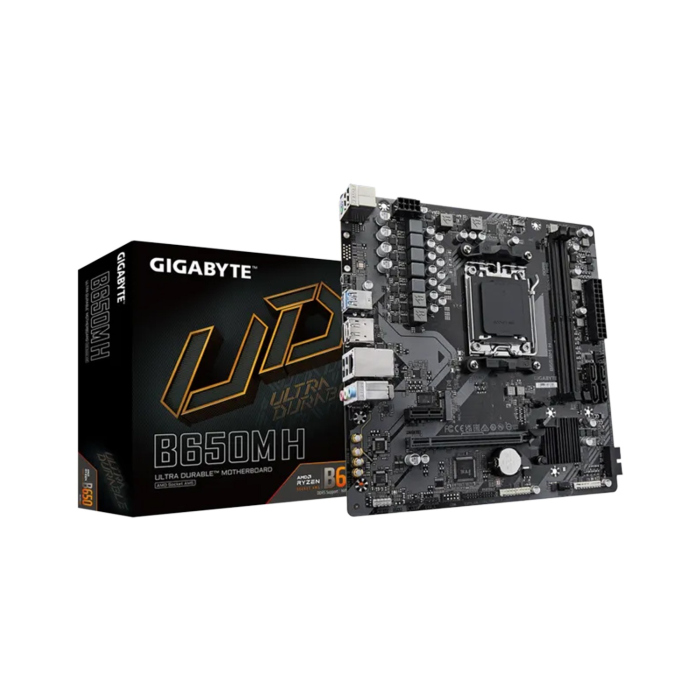

Gigabyte AMD B650M H DDR5 Micro ATX Motherboard

Reliable AM5 Platform for Everyday Gaming Builds

The Gigabyte AMD B650M H DDR5 Micro-ATX Motherboard is designed to deliver a stable and cost-effective foundation for modern AMD systems. Built on the B650 chipset, it supports AMD Ryzen 7000, 8000, and 9000 series processors using the AM5 socket. This makes it a solid choice for entry-level to mid-range gaming PCs and productivity setups, offering essential features without unnecessary complexity.

DDR5 Performance with Efficient Power Design

Equipped with dual-channel DDR5 memory support, the motherboard allows speeds up to around 6400+ MT/s (overclocked), improving bandwidth and system responsiveness. It features a 5+2+2 phase digital VRM design, ensuring stable power delivery for standard workloads. Combined with PCIe 4.0 support for both GPU and storage, it provides reliable performance for modern applications and gaming.

Essential Connectivity with Practical Features

The B650M H includes a PCIe 4.0 x16 slot for graphics cards and a PCIe 4.0 M.2 slot for high-speed SSDs, along with four SATA ports for additional storage. Connectivity options include HDMI and DisplayPort for integrated graphics output, Gigabit LAN for networking, and multiple USB ports. User-friendly features like Q-Flash Plus and Smart Fan 6 simplify BIOS updates and cooling management, making it suitable for beginners and budget builders.

Key Specifications

• Chipset: AMD B650

• CPU Socket: AM5 (Ryzen 7000 / 8000 / 9000 Series)

• Memory: 2 × DDR5 DIMM, up to 128GB (up to ~6400 MT/s OC)

• VRM: 5+2+2 Phase Digital Power Design

• Expansion Slots:

  • 1 × PCIe 4.0 x16

  • 1 × PCIe x1

• Storage:

  • 1 × M.2 PCIe 4.0 x4

  • 4 × SATA 6Gb/s

• Networking: Gigabit LAN (1GbE)

• Video Outputs: HDMI 2.1, DisplayPort 1.4

• USB Ports: USB 3.2 Gen 1, USB 2.0

• Audio: 7.1-channel HD Audio (Realtek)

• Cooling: Smart Fan 6 with multiple sensors

• Special Features: Q-Flash Plus, EZ-Latch, RGB headers

• Form Factor: Micro-ATX

• Use Case: Budget gaming builds, office PCs, entry AM5 systems
