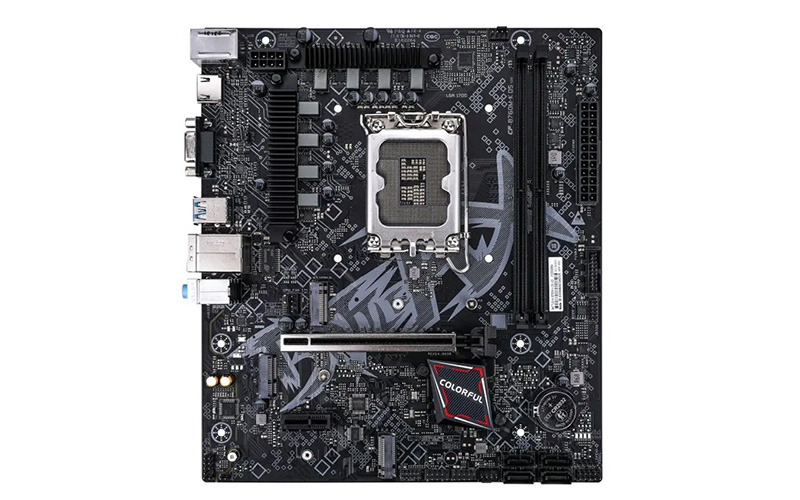

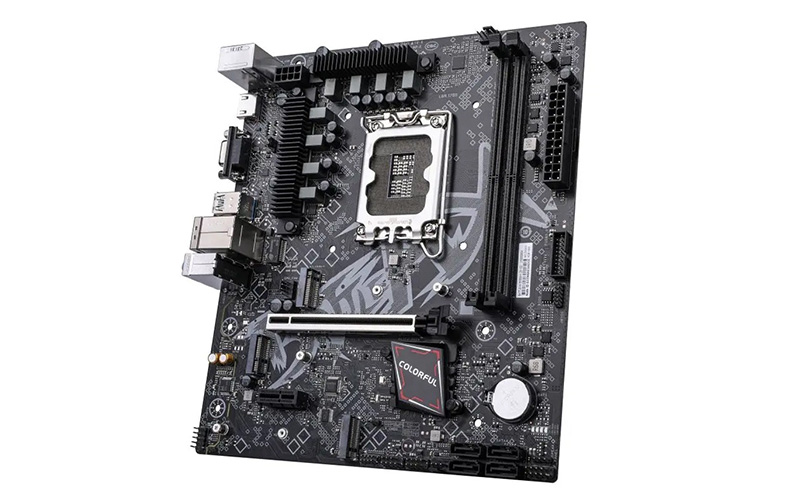

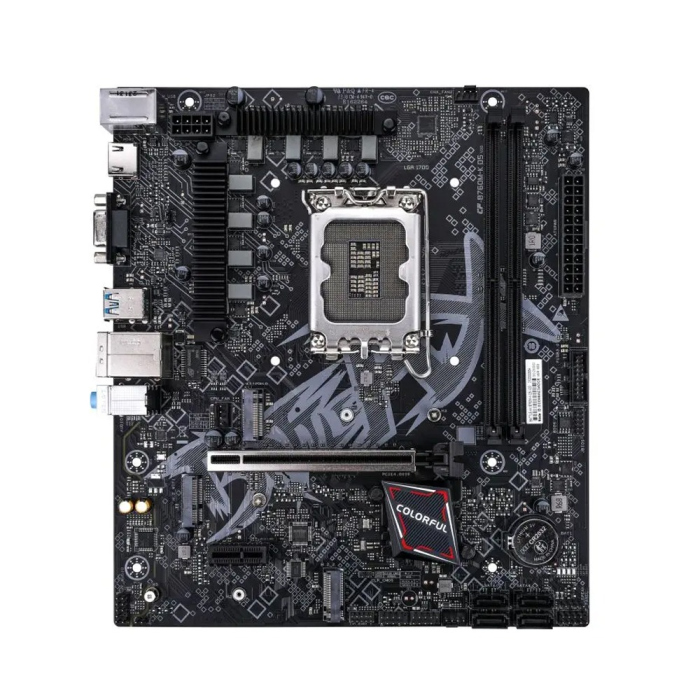

Colorful BATTLE-AX Intel B760M-K D5 V20 Motherboard

High-Speed DDR5 Memory and Dual M.2 Storage

This motherboard supports dual-channel DDR5 memory with overclocking speeds up to 7200MHz (OC), providing increased bandwidth and improved responsiveness for gaming and multitasking. It includes two PCIe 4.0 x4 M.2 slots for high-speed NVMe SSDs, along with four SATA 6Gb/s ports for additional storage expansion. Intel XMP support allows compatible memory kits to run at their rated speeds with minimal BIOS configuration.

Essential Connectivity and Stable Performance

The B760M-K D5 V20 features a PCIe 4.0 x16 slot for dedicated graphics cards, a PCIe 3.0 x1 slot for expansion cards, and Realtek Gigabit LAN for dependable wired networking. It also includes HDMI 2.0 and VGA outputs for systems using integrated graphics, plus an M.2 Key-E slot that supports optional 2230 Wi-Fi modules. Colorful incorporates multiple hardware protection technologies and extensive factory testing to enhance long-term reliability and consistent operation.

Key Specifications

• Product Name: Colorful BATTLE-AX Intel B760M-K D5 V20 Motherboard

• Chipset: Intel B760

• CPU Socket: LGA1700

• Processor Support: Intel Core 12th / 13th / 14th Generation Processors

• Form Factor: Micro-ATX (236 × 207 mm)

• Memory Support: 2 × DDR5 DIMM Slots

• Maximum Memory Capacity: Up to 96GB

• Memory Speed: DDR5-4800 to DDR5-7200 (OC)

• Memory Technology: Dual-Channel with Intel XMP Support

• Graphics Slot: 1 × PCIe 4.0 x16

• Additional Slot: 1 × PCIe 3.0 x1

• Storage: 2 × PCIe 4.0 x4 M.2 Slots, 4 × SATA 6Gb/s

• Networking: Realtek RTL8111H Gigabit LAN

• Wireless Expansion: M.2 Key-E Slot for Optional Wi-Fi 2230 Module

• Display Outputs: HDMI 2.0 (up to 4K 60Hz) and VGA

• Audio: Realtek ALC897 5.1-Channel HD Audio

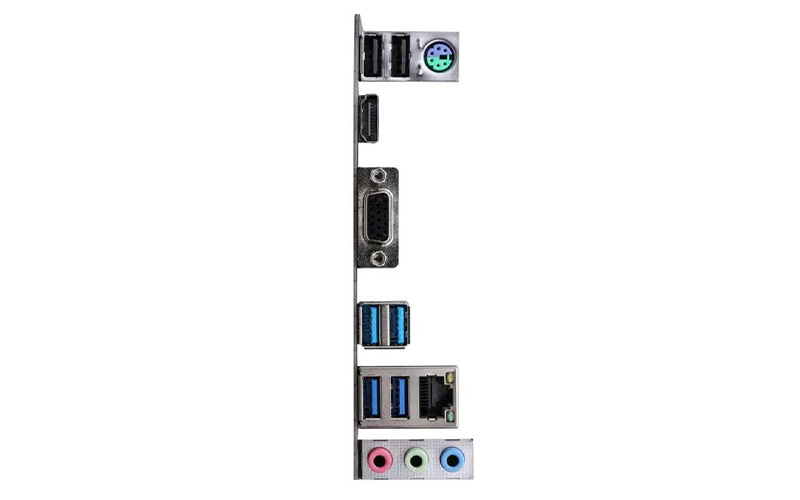

• Rear USB Ports: 4 × USB 3.2 Gen 1 Type-A, 2 × USB 2.0

• RAID Support: RAID 0 / 1 / 5 / 10

• Usage: Gaming, Productivity, and Mainstream DDR5 PC Builds
