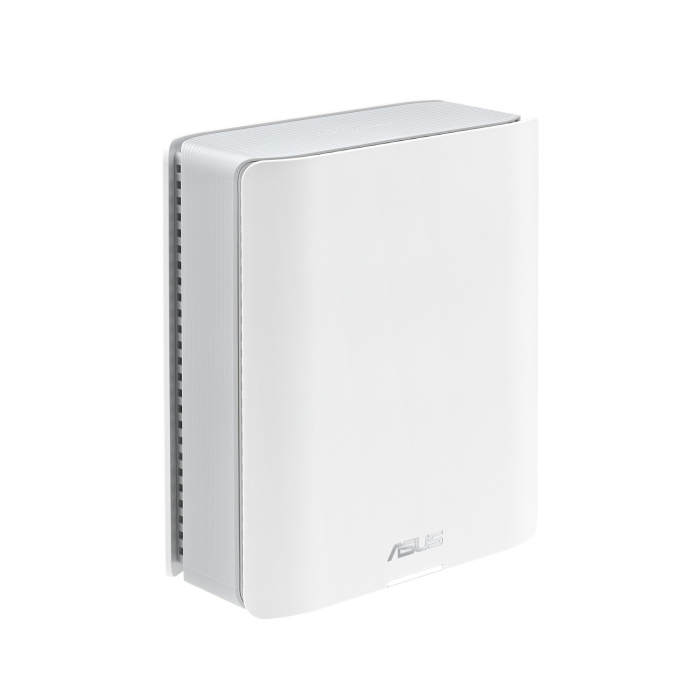

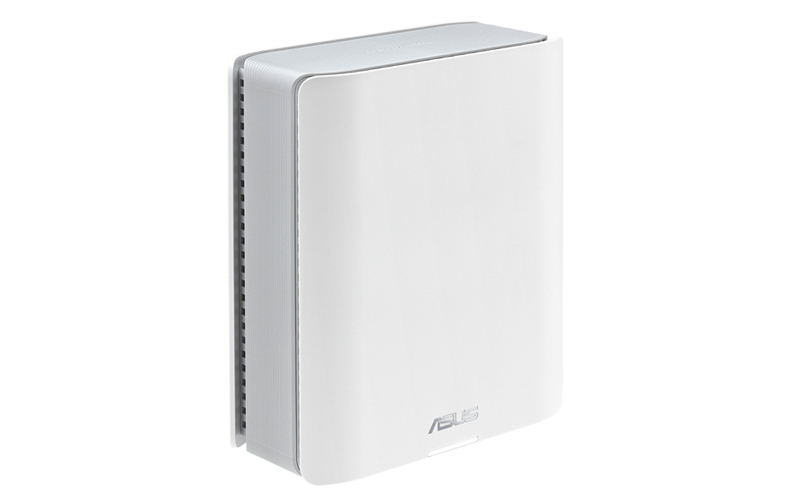

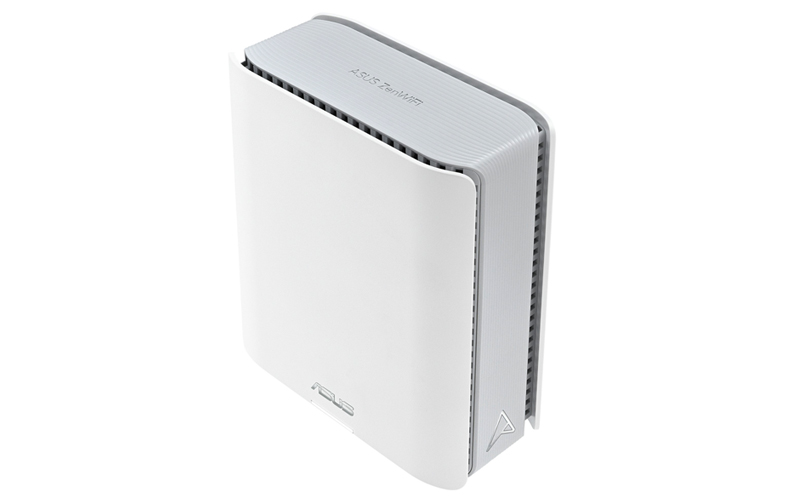

ASUS ZenWiFi BT8 – Tri-Band WiFi 7 Mesh System for Whole-Home Coverage
The Asus ZenWiFi BT8 is a high-performance mesh Wi-Fi system designed to deliver ultra-fast, reliable wireless coverage across large homes and multi-room environments. Powered by the latest WiFi 7 (802.11be) standard, it offers significantly improved speed, reduced latency, and enhanced device handling for modern smart homes. WiFi Standard: WiFi 7 (802.11be), tri-band |  |
 | Speed & Coverage
This tri-band mesh system operates over the 2.4 GHz, 5 GHz, and 6 GHz bands. In ideal conditions, speeds can reach approximately 688 Mbps (2.4 GHz), 4,323 Mbps (5 GHz), and 8,643 Mbps (6 GHz). A two-unit pack can cover up to around 5,900 sq ft, making it suitable for large homes, apartments with thick walls, and multiple-floor layouts.
Mesh Technology & Network Efficiency
ZenWiFi BT8 uses Smart AiMesh technology to create a seamless whole-home network. Multi-Link Operation intelligently combines connection paths for consistent throughput and low latency. Each unit includes dual 2.5G Ethernet ports, enabling flexible wired backhaul or high-speed network device connections. |
Security & Smart Features
Built-in AiProtection Pro provides advanced network security, real-time threat defense, and features like parental controls and guest networks. The router also supports VPN server and client modes, plus dedicated IoT device network separation for safe smart-home integration.
Ideal For Homes requiring fast, stable Wi-Fi for streaming, online gaming, work-from-home, smart-home devices, and heavy multi-user data loads. Perfect for upgrading from older WiFi 5 or WiFi 6 systems.
|  |
| Model No | Asus ZenWiFi BT8 WIFI7 Tri-Band BE14000 Smart Home Mesh Extendable Router - White |
| Part No | 90IG0930-MO3B40 |
| Wireless Standard | Wi-Fi 7 (IEEE 802.11be) |
| Network Bands | Tri-band: 2.4 GHz, 5 GHz, 6 GHz |
| Maximum Theoretical Throughput | Up to ~14 Gbps total combined across bands |
| Band Speeds | • 2.4 GHz: up to approx. 688 Mbps • 5 GHz: up to approx. 4,323 Mbps • 6 GHz: up to approx. 8,643 Mbps |
| Streams (per band) | • 2.4 GHz: 2×2 • 5 GHz: 3×3 • 6 GHz: 3×3 |
| Multi-Link Operation (MLO) | Yes — supports combining or switching between bands for high throughput/backhaul |
| Mesh Technology | Smart AiMesh (ASUS mesh system) |
| Coverage Area (2-pack) | Up to approx. 5,900 sq ft (varies with environment) |

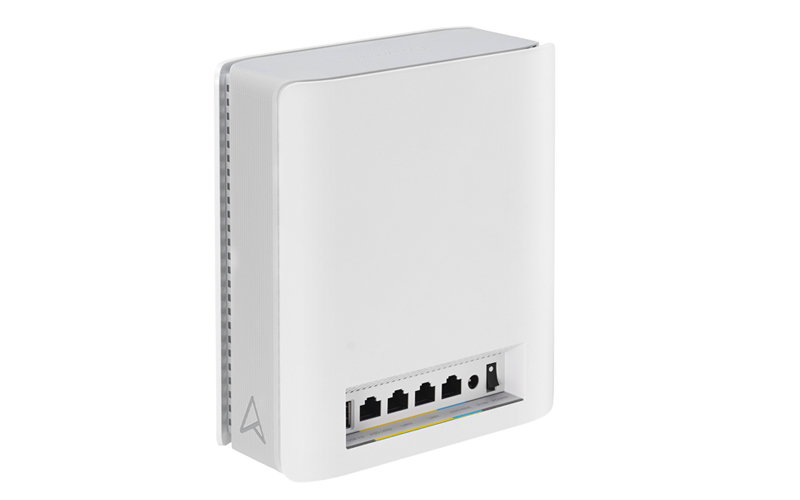

| Ports (each node) | • One 2.5 Gbps RJ-45 WAN/LAN port • One 2.5 Gbps RJ-45 LAN port • Two 1 Gbps RJ-45 LAN ports • One USB-A 3.x port (for storage / tethering) |
| Other Features | • 4K-QAM support (higher modulation efficiency) • Built-in IoT / Smart Home network support • Mobile tethering support (4G/5G) • Full mesh node units (identical hardware) |
| Processor / Memory / Storage | 1 GB RAM, 128 MB Flash (varies by region) |
| Physical Size (each unit) | Approx. 187 mm × 159 mm × 72 mm (varies) |
| System Compatibility | Works with typical home/office wired + wireless devices, supports WAN internet link, wired LAN backhaul or wireless mesh backhaul |
| Security & Software Features | • Advanced parental controls • Guest network support • Network security suite built-in • AiMesh control via app/web interface |
| Power / Input | 100-240 V AC input (region dependent) |
| Typical Use Case | Whole-home mesh Wi-Fi for large spaces, high device density, high-speed internet and multi-gig wired backhaul scenarios |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
