![]() | Advanced Networking Features and Multi-Gig ConnectivityPowered by a 1.5GHz quad-core processor, the ZenWiFi BD4 supports key WiFi 7 technologies including Multi-Link Operation (MLO), 4K-QAM, and 160MHz channel bandwidth for improved speed and lower latency. Two 2.5 Gigabit Ethernet ports with automatic WAN/LAN detection provide high-speed wired connections for internet service and local devices such as gaming PCs or NAS systems. ASUS also includes AiProtection Pro, parental controls, VPN support, and Smart Home Master SSIDs for secure and organized networking.
Easy Expansion with ASUS AiMesh TechnologyThe ZenWiFi BD4 can operate as a primary router, access point, or AiMesh node, making it highly flexible for both new and existing ASUS networking setups. Four internal antennas and beamforming technology help eliminate dead zones and maintain consistent coverage throughout your home. Compatible with older WiFi standards as well as the latest WiFi 7 devices, it is an excellent choice for users seeking future-ready wireless performance with simple setup and dependable security. |
Key Specifications
| ![]() |
| Model No | ASUS ZenWiFi BD4 (1PK) |
| Part No | 90IG0960-MO3C00 |
| Product Type | Wi-Fi 7 Mesh Router / AiMesh Extendable Router |
| Wi-Fi Standard | Wi-Fi 7 (802.11be) |
| Wi-Fi Bands | Dual-Band (2.4 GHz + 5 GHz) |
| Maximum Speed | Up to 3.6 Gbps |
| 2.4 GHz Speed | Up to 688 Mbps |
| 5 GHz Speed | Up to 2882 Mbps |
| Coverage | Up to 6500 sq. ft. |
| Antennas | 4 Internal Antennas |
| MU-MIMO | Yes |
| OFDMA | Yes |
| Beamforming | Yes |
| Modulation | 4096-QAM |
| Channel Bandwidth | 20 / 40 / 80 / 160 MHz |

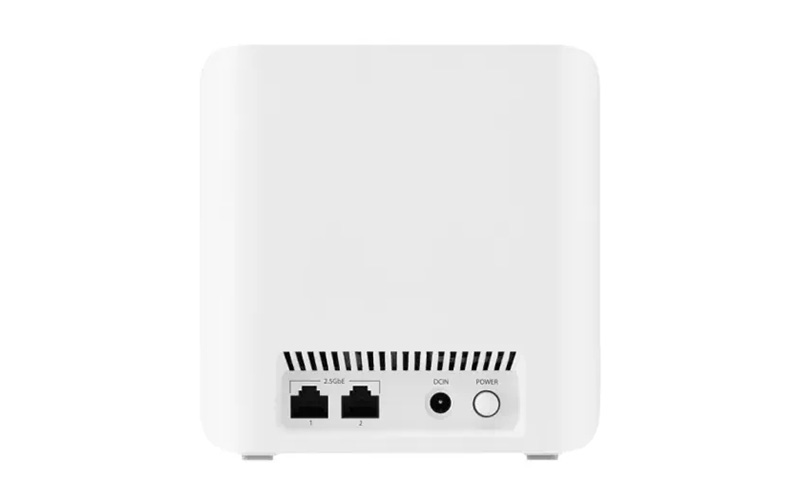

| Ethernet Ports | 2 × 2.5G WAN/LAN Auto-Detect Ports |
| USB Ports | None |
| Processor | 1.5 GHz Quad-Core Processor |
| RAM | 512 MB |
| Flash Storage | 128 MB |
| Operating Modes | Router Mode, AiMesh Node Mode, Access Point Mode |
| Supported Standards | IEEE 802.11a/b/g/n/ac/ax/be, IPv4, IPv6 |
| Security | WPA, WPA2-Personal, WPA3-Personal, AiProtection Pro |
| Firewall | Yes |
| VPN Support | OpenVPN, WireGuard, IPSec, PPTP, L2TP, VPN Fusion |
| Guest Network | Yes |
| Parental Controls | Web & App Filters, Time Scheduling, Safe Browsing |
| QoS Support | Yes |
| Dynamic DNS (DDNS) | Yes |
| Mobile App | ASUS Router App |
| LED Indicators | Power |
| Buttons | WPS, Reset, Power Switch |
| Power Input | AC 110–240V, 50–60Hz |
| Power Output | DC 12V / 1.5A |
| Dimensions | 140 × 70 × 140 mm |
| Weight | Approx. 0.51 kg |
| Color | White |
| Package Contents | Router, Power Adapter, Ethernet Cable |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
