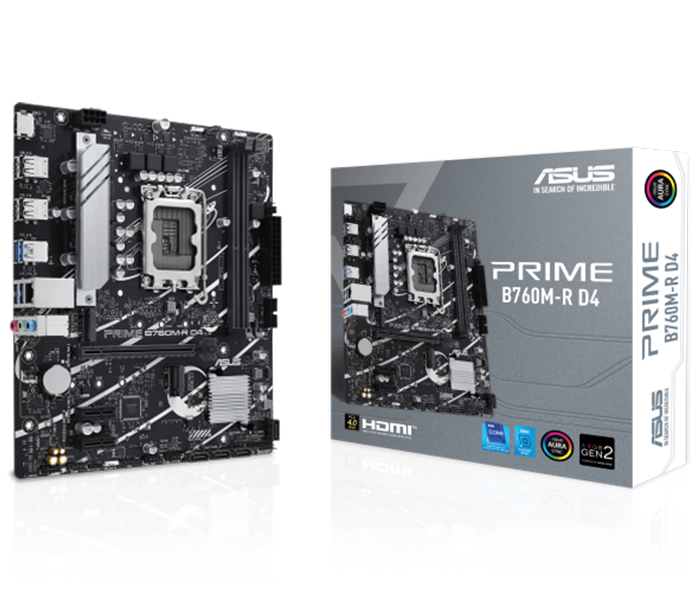

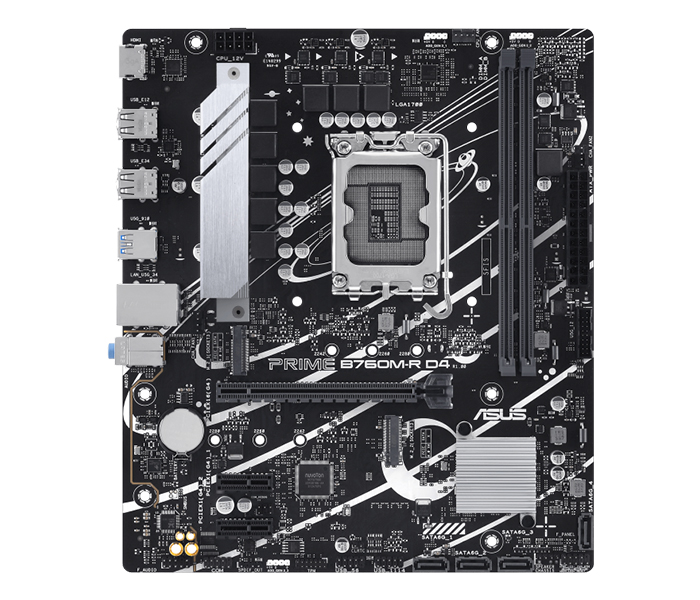

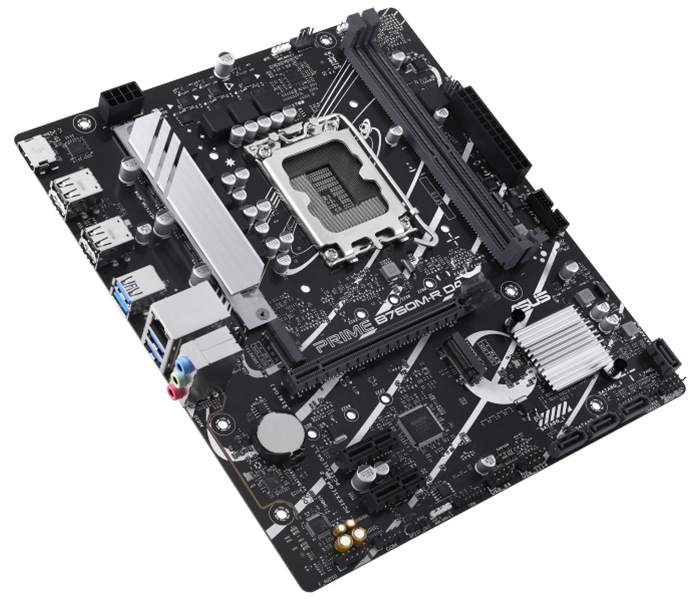

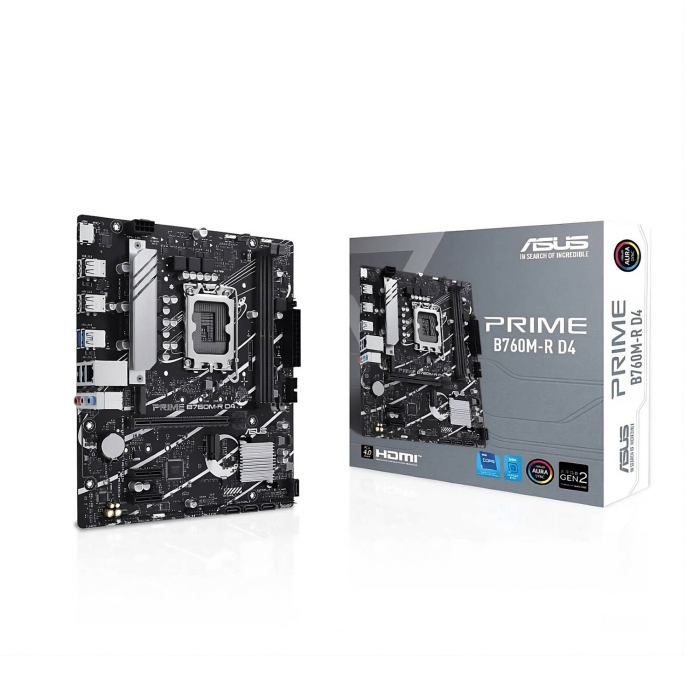

PRIME B760M-R D4

FLEXIBILITY

• Intelligent Control
  ASUS Intelligent Control makes your PC smart. Along with taking care of complex tuning and dynamically optimizing essential aspects of your system, it offers intelligently simplified options for newcomers to PC DIY, as well as more comprehensive features for seasoned veterans.
• All-Around Energy Efficiency
  The Power Saving function contains several settings can easily optimize power consumption and maximize energy savings. You can enable a CPU power limit, darken Aura lighting, and set the fan profile to a power saving mode. You can also toggle the Power Saver plan that is built into Microsoft Windows.
• Flexible Air-Cooling Controls
  ASUS Fan Xpert 2+ software provides comprehensive control over fan. There’s an Extreme Quiet mode that reduces fan speeds to below the default minimum to keep your system whisper-quiet when performing light tasks. Fan can also be controlled via the UEFI BIOS.
• Precise Digital Power Control
  The Digi+ voltage-regulator module (VRM) delivers real-time control over voltage droop, automatically switching frequency and power-efficiency settings. It also allows you to fine-tune your CPU for ultimate stability and performance.
• ProCool Connector
  Proprietary connectors augment the motherboard's link to the PSU with 8 pin connectors that pass 12 volts of power directly to the processors. Each jack features solid pins that can handle more current than hollow-pin connectors.
• DDR4 Support
  Improvements to trace routing design provide the latest Intel® processors with enhanced access to memory bandwidth. ASUS technology carefully maps memory signal pathways across different PCB layers to reduce path distance, and it adds shielding zones that significantly reduce crosstalk.
• Two M.2 Slots (up to 64 Gbps)
  The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.

PERSONALIZATION

• VRM Heatsink and Thermal Pad
  VRM heatsink and thermal pad improve heat transfer from the MOSFETs and chocks for better cooling performance.
• Multiple Temperature Sources
  Each header can dynamically reference three thermal sensors. FAN Xpert allows you to map the temperature of supported ASUS graphics cards to optimize cooling for GPU- and CPU-intensive tasks.
• 4-Pin PWM/DC Fan
  The chassis fan header supports auto-detection of PWM or DC fans.
• Audio Shielding
  Audio shielding ensures precision analog/digital separation and greatly reduced multi-lateral interference.
• Dedicated Audio PCB Layers
  Separate layers for left and right tracks ensures both channels deliver consistent, equal quality.
• Premium Audio Capacitors
  Provides warm, natural, and immersive sound with exceptional clarity and fidelity.
• Aura Sync
  Outshine the Competition
  A well-tuned enthusiast system deserves a matching aesthetic. ASUS Aura offers full RGB lighting control with a variety of functional presets for the built-in RGB LEDs as well as strips and devices connected to the onboard RGB headers — and it can all be synced with an ever-growing portfolio of Aura-capable hardware.
• Addressable Gen 2 Headers
  Two Addressable Gen 2 headers are capable of detecting the number of LEDs on second-gen addressable RGB devices, allowing the software to automatically tailor lighting effects to specific devices. The new headers also offer backward-compatibility with existing Aura RGB gear.
• Armoury Crate
  Within a single intuitive interface, Armoury Crate offers easily customized Aura Sync RGB settings for every compatible device in your arsenal , plus controls for an ever-growing family of ASUS products, including keyboard and mouse preferences. Armoury Crate also integrates product registration and a news feed so that you never miss updates of interest to the ASUS community.

Connectivity

• PCIe 4.0 Slot
  The PRIME B760 motherboard is designed specifically for 14th, 13th and 12th Gen Intel® CPUs and offer PCIe 4.0 connectivity for the latest GPUs.
• Realtek 2.5 Gb Ethernet
  Realtek 2.5 Gb Ethernet reduces CPU overhead and offers exceptionally high TCP and UDP throughput for faster, smoother data transfers.
• LANGuard
  ASUS LANGuard is a hardware-level network protection feature that integrates advanced signal-coupling technology and premium anti-EMI surface-mounted capacitors to improve throughput and ensure a more reliable connection.
• Two M.2 Slots (up to 64 Gbps)
  The PRIME B760 motherboard offers a total of two M.2 slots that support data-transfer speeds of up to 64 Gbps via PCIe 4.0, enabling quicker boot-up and app load times with OS or application drives.
