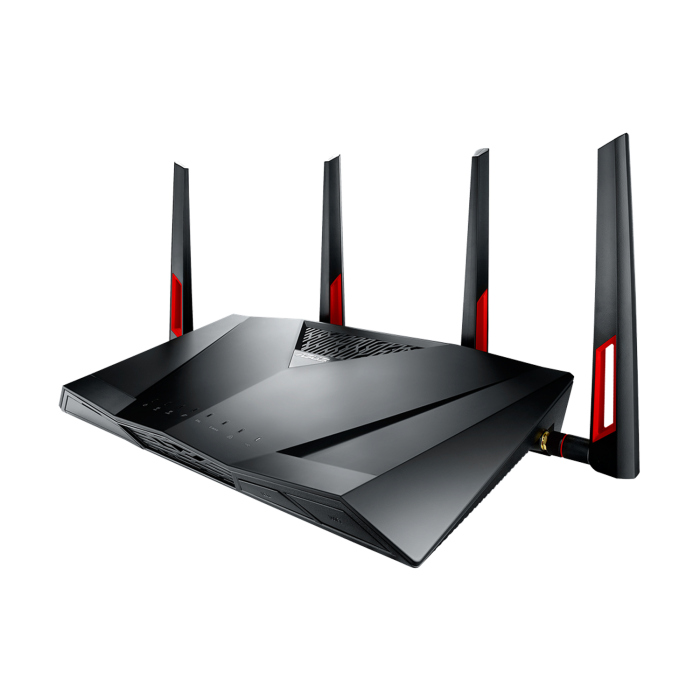

Model No | Asus DSL-AC88U AC3100 |
Part No | DSL-AC88U |
Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) IPv4 IPv6 |
Product Segment | AC3100 ultimate AC performance : 1000+2167 Mbps |
WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 600 Mbps WiFi 4 (802.11n) TurboQAM : up to 800 Mbps WiFi 5 (802.11ac) : up to 1734 Mbps 1024QAM (2.4GHz) : up to 1000 Mbps 1024QAM (5GHz) : up to 2167 Mbps |
xDSL Data Rate | VDSL2 Upstream: 150Mbps, Downstream: 200Mbps ADSL2+ Upstream: 3.3Mbps, Downstream: 24Mbps ADSL2 Upstream: 3.5Mbps, Downstream: 12Mbps |
Antenna | Detachable antenna x 4 |
Operating Frequency | 2.4 GHz 5 GHz |
I/O Ports | 1 x RJ11 for xDSL 4 x RJ45 10/100/1000/Gigabits BaseT for LAN 1 x RJ45 10/100/1000/Gigabits BaseT for WAN |
Buttons | WPS Button, Reset Button, Power Button, Wireless on/off Button, LED on/off Button USB 2.0 x 1 USB 3.0 x 1 |
LED Indicator | Power, VDSL, Internet, LAN x 2, 5 GHz WiFi, 2.4 GHz WiFi, USB x 1, E-WAN |
Power Supply | AC Input : 110 ~240 V(50~60HZ) DC Output : 19 V/3.42 A |
WAN | Port forwarding • Maximum Port Forwarding Rule : 32 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS |
LAN | DHCP Server IGMP snooping IPTV Manually assign IP address • Maximum Manually Assign IP Address Rule : 64 |
Wireless | MU-MIMO UTF-8 SSID WiFi MAC address filter • Maximum MAC Filters : 32 Wireless scheduler Airtime fairness Universal beamforming Explicit beamforming |
Package Content | VDSL/ADSL DSL-AC88U Network cable (RJ-45) Power adapter Splitter DSL Cable Warranty card Quick Start Guide Support CD |
Product Dimension | 292 x 180 x 61 ~ mm (WxDxH) (Without Bezel) |
Product Weight | 795 g |
Warranty | Warranty 1 Year ( As per Manufacturer Policy ) |
