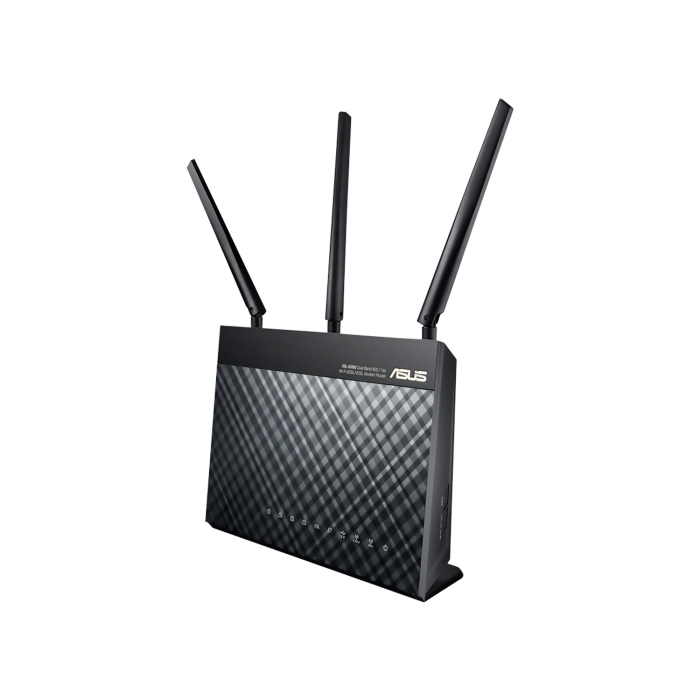

Model No | Asus DSL-AC68U |
Part No | DSL-AC68U |
Network Standard | IEEE 802.11a IEEE 802.11b IEEE 802.11g WiFi 4 (802.11n) WiFi 5 (802.11ac) IPv6 |
Product Segment | AC1900 ultimate AC performance : 600+1300 Mbps |
WiFi Data Rate | 802.11a : up to 54 Mbps 802.11b : up to 11 Mbps 802.11g : up to 54 Mbps WiFi 4 (802.11n) : up to 450 Mbps WiFi 4 (802.11n) TurboQAM : up to 600 Mbps WiFi 5 (802.11ac) : up to 1300 Mbps |
xDSL Data Rate | VDSL2/ADSL2+/ADSL2/ADSL multimode Up to 100Mbps/100Mbps upstream/downstream Support Annex A/B/I/J/L/M Support all VDSL2 profiles -8a, 8b, 8c, 8d, 12a, 12b, 17a and 30a VDSL2 interface compliance with ITU-T993.2 G.992.1 (G.dmt), Annex A, and B Compliant G.992.2 (G.lite), Annex A, and B Compliant ANSI T1.413 Compliant G.992.3 (ADSL2) Compliant, Annex A, B, L, and M G.992.5 (ADSL2+) Compliant, Supporting Annex A, B, and M G.993.2 Compliant, Annex A, B, up to profile 30a with external AFE. G.993.5 (Vectoring) ATM and PTM (dual-priority) |
Antenna | External antenna x 3 |
I/O Ports | 1 x RJ11 for xDSL 4 x RJ45 10/100/1000/Gigabits BaseT for LAN USB 3.0 x 1 |
Buttons | WPS Button, Reset Button, Power Button, Wireless on/off Button |
LED Indicator | Power, Internet, LAN x 4, xDSL, 2.4 GHz Wi-Fi, 5 GHz Wi-Fi |
Power Supply | AC Input : 100 ~240 V(50~60HZ) DC Output : 19 V/1.75 A |
WAN | Dual WAN 3G/4G LTE dongle 4G / 5G Auto Mobile Tethering Port forwarding • Maximum Port Forwarding Rule : 64 Port triggering • Maximum Port Triggering Rule : 32 DMZ DDNS |
LAN | DHCP Server IGMP snooping IPTV Manually assign IP address • Maximum Manually Assign IP Address Rule : 64 Wake on LAN (WOL) |
Wireless | UTF-8 SSID WiFi MAC address filter • Maximum MAC Filters : 64 Wireless scheduler Airtime fairness RADIUS Server Universal beamforming Explicit beamforming |
Package Content | DSL-AC68U Dual-band Wireless-AC1900 VDSL/ADSL Modem Router RJ-45 cable RJ-11 cable Support CD(User manual and utility) Power adapter Warranty card Quick start guide Splitter (varies with regions) |
Product Dimension | 220 x 160 x 83.3 ~ mm (WxDxH) (Without Bezel) |
Product Weight | 640 g |
Warranty | Warranty 1 Year ( As per Manufacturer Policy ) |
