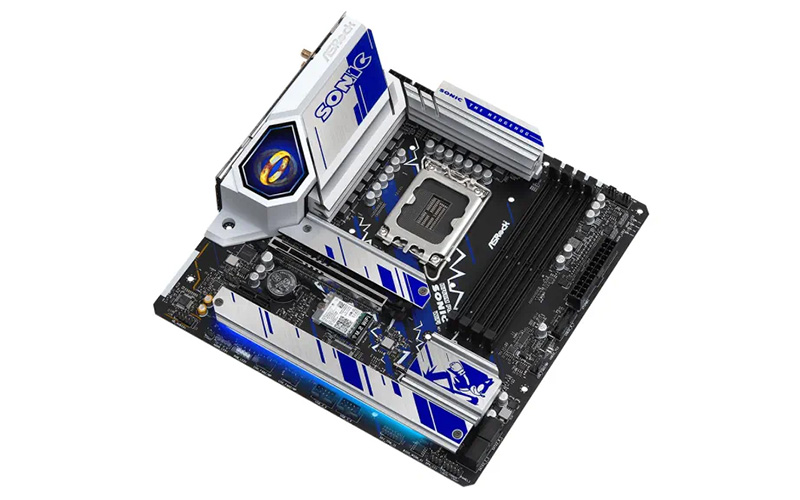

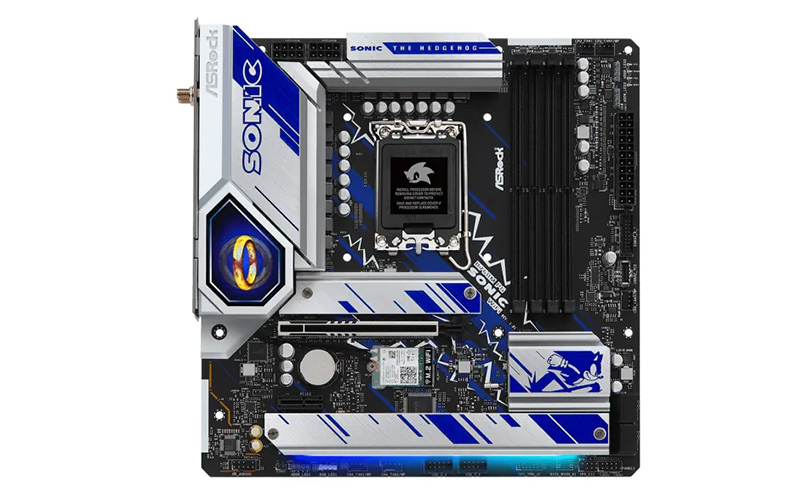

ASRock B760M PG Sonic WiFi 6E DDR5 - LGA 1700 - DDR5 Micro ATX Motherboard

Model No

ASRock B760M PG Sonic WiFi 6E

Part No

90-MXBKM0-A0UAYZ

Chipset

B760M

Form Factor

Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm

Socket Compatibility

Supports 14^th, 13^th & 12^th Gen Intel^® Core™ Processors (LGA1700)
Supports Intel^® Hybrid Technology
Supports Intel^® Turbo Boost Max 3.0 Technology
Supports Intel^® Thermal Velocity Boost (TVB)
Supports Intel^® Adaptive Boost Technology (ABT)

Wireless & Bluetooth

802.11ax Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax

Supports Dual-Band 2x2 with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth + High-speed class II

Supports MU-MIMO

Memory Type

DDR5

Memory Compatibility

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 non-ECC, un-buffered memory up to 7200+(OC)*

Max. capacity of system memory: 256GB

Supports Intel^® Extreme Memory Profile (XMP) 3.0

Storage Compatibility

CPU:

1 x Hyper M.2 Socket (M2_1, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

Chipset:

1 x Hyper M.2 Socket (M2_2, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

4 x SATA3 6.0 Gb/s Connectors

Back Panel I/O Ports

2 x Antenna Ports

1 x PS/2 Mouse/Keyboard Port

1 x HDMI Port

1 x DisplayPort 1.4

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s)

4 x USB 3.2 Gen1 Ports

2 x USB 2.0 Ports

1 x RJ-45 LAN Port

HD Audio Jacks: Line in / Front Speaker / Microphone

USB Ports

2 x USB 3.2 Gen2 Type-C (1 Rear, 1 Front)

1 x USB 3.2 Gen2 Type-A (Rear)

6 x USB 3.2 Gen1 (4 Rear, 2 Front)

6 x USB 2.0 (2 Rear, 4 Front)

Expansion Slots

CPU:

1 x PCIe 5.0 x16 Slot (PCIE1), supports x16 mode*

Chipset:

1 x PCIe 4.0 x1 Slot (PCIE2)*

1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel^® CNVio/CNVio2 (Integrated WiFi/BT)

15μ Gold Contact in VGA PCIe Slot (PCIE1)

Audio

7.1 CH HD Audio (Realtek ALC897 Audio Codec)

Nahimic Audio

Internal I/O Connectors

1 x eDP Signal Connector

1 x SPI TPM Header

1 x Chassis Intrusion and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector (Hi-Density Power Connector)

2 x 8 pin 12V Power Connectors (Hi-Density Power Connector)

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2 Header (10 Gb/s)

Special Features

Superb Productivity

- PCIe Gen5 (Graphics)

- Dual Channel DDR5

Rock-Solid Durability

- 12+1+1 Power Phase, 50A Dr.MOS for VCore+GT

- Flexible Integrated I/O Shield

Ultrafast Connectivity

- 2.5G LAN,

802.11ax Wi-Fi 6EModule

EZ Update

- ASRock Auto Driver Installer

EZ Troubleshooter

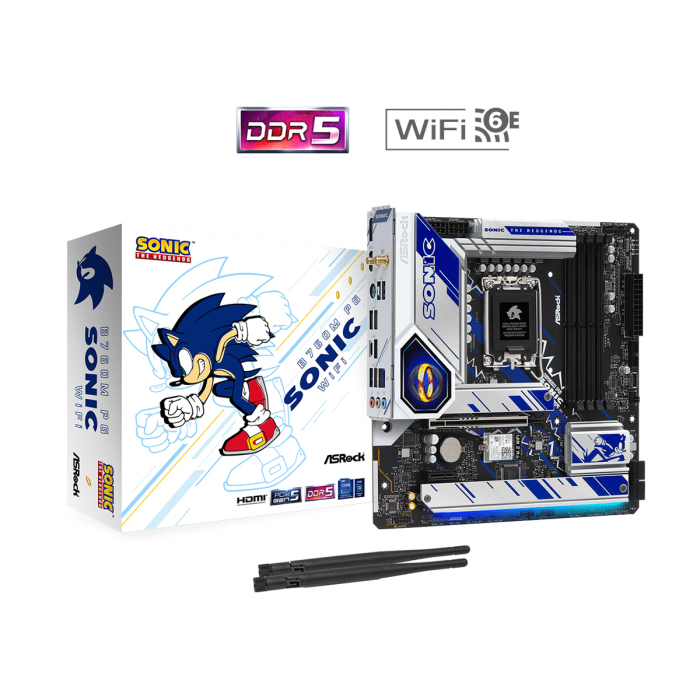

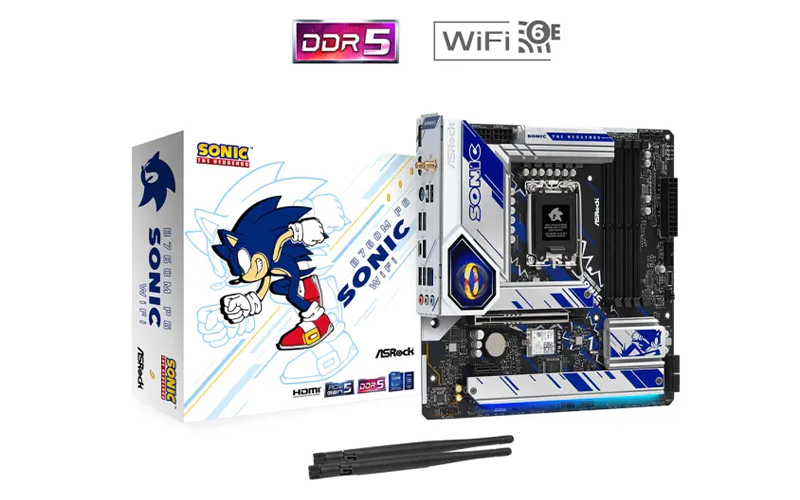

Package Content

1 x User Manual

2 x SATA Data Cables

2 x ASRock WiFi 2.4/5/6 GHz Antennas

3 x Screws for M.2 Sockets

2 x Standoffs for M.2 Sockets

Warranty

1 Year ( As per Manufacturer Policy )
