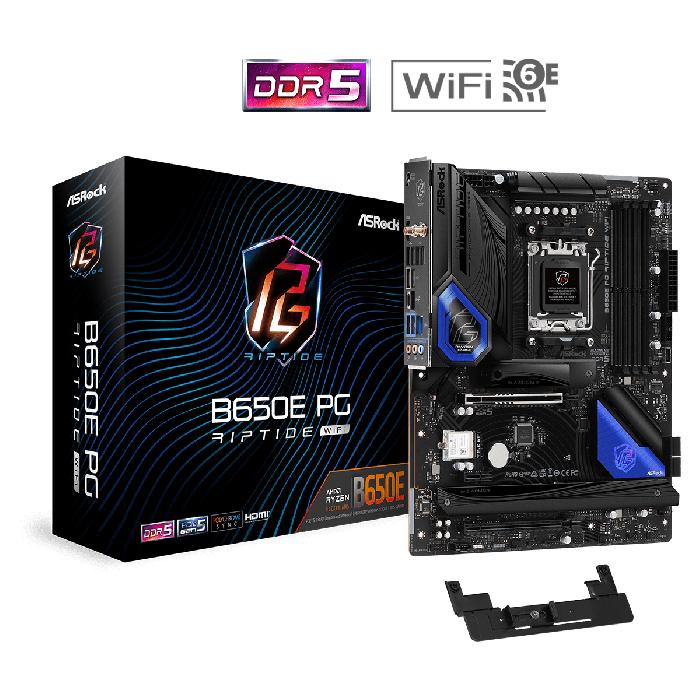

ASRock B650E PG Riptide WiFi - ATX AM5 Motherboard

Model No

ASRock B650E PG Riptide WiFi - ATX AM5 Motherboard

Part No

90-MXBL00-A0UAYZ

Chipset

B650E

Unique Feature

Superb Productivity

PCIe Gen5 (Graphics, M.2)

Dual Channel DDR5

Rock-Solid Durability

Server-Grade Low-Loss PCB

14+2+1 Power Phase, 60A SPS

Flexible Integrated I/O Shield

Ultrafast Connectivity

Killer 2.5G LAN

802.11ax Wi-Fi 6E

Module

ASRock Lightning Gaming Ports

EZ Update

BIOS Flashback Button

ASRock Auto Driver Installer

Socket Compatibility

Supports AMD Socket AM5 Ryzen™ 9000, 8000 and 7000 Series Processors

Wireless & LAN

802.11ax Wi-Fi 6E Module

Supports IEEE 802.11a/b/g/n/ac/ax

Supports Dual-Band 2x2 with extended 6GHz band support*

2 antennas to support 2 (Transmit) x 2 (Receive) diversity technology

Supports Bluetooth 5.2 + High speed class II

Supports MU-MIMO

2.5 Gigabit LAN 10/100/1000/2500 Mb/s

Killer E3100G

Supports Killer LAN Software

Memroy Type

DDR5

Memory Compatibility

Dual Channel DDR5 Memory Technology

4 x DDR5 DIMM Slots

Supports DDR5 ECC/non-ECC, un-buffered memory up to 7600+(OC)*

Max. capacity of system memory: 256GB

Supports Extreme Memory Profile (XMP) and EXTended Profiles for Overclocking (EXPO) memory modules

Storage Compatibility

CPU:

1 x Blazing M.2 Socket (M2_1, Key M), supports type 2280 PCIe Gen5x4 (128 Gb/s) mode*

Chipset:

1 x M.2 Socket (M2_2, Key M), supports type 2242/2260/2280 SATA3 6.0 Gb/s & PCIe Gen3x2 (16 Gb/s) -modes*

1 x Hyper M.2 Socket (M2_3, Key M), supports type 2260/2280 PCIe Gen4x4 (64 Gb/s) mode*

2 x SATA3 6.0 Gb/s Connectors

ASMedia ASM1061:

2 x SATA3 6.0 Gb/s Connectors

Back Panel I/O Ports

2 x Antenna Ports

1 x HDMI Port

1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) (ReDriver)

1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) (ReDriver)

2- x USB 3.2 Gen1 Ports (USB32_23 are Lightning Gaming Ports)

6 x USB 2.0 Ports

1 x RJ-45 LAN Port

1 x BIOS Flashback Button

HD Audio Jacks: Line in / Front Speaker / Microphone

Connector

1 x SPI TPM Header

1 x Power LED and Speaker Header

1 x RGB LED Header*

3 x Addressable LED Headers**

1 x CPU Fan Connector (4-pin)***

1 x CPU/Water Pump Fan Connector (4-pin) (Smart Fan Speed Control)****

4 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control)*****

1 x 24 pin ATX Power Connector

1 x 8 pin 12V Power Connector

1 x 4 pin 12V Power Connector

1 x Front Panel Audio Connector

1 x Thunderbolt™ AIC Connector (5-pin) (Supports ASRock Thunderbolt™ 4 AIC Card)

2 x USB 2.0 Headers (Support 3 USB 2.0 ports)

1 x USB 3.2 Gen1 Header (Supports 2 USB 3.2 Gen1 ports)

1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s) (ReDriver

Warranty

1 Year ( As per Manufacturer Policy )
