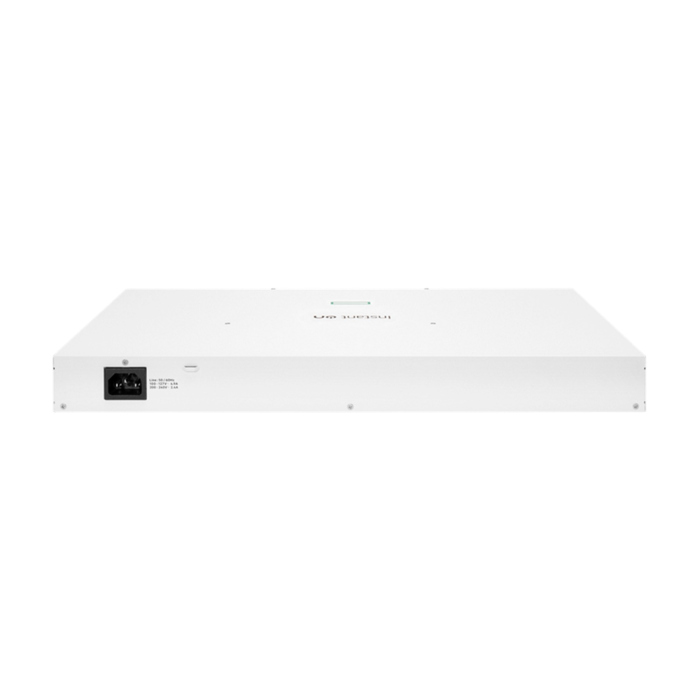

Name: Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
SKU: JL683A
Price: 120 KWD
Availability: OutOfStock

Model No	Aruba Instant On 1930 24G Switch
Part No	JL683A
Interfaces	24 x 10/100/1000 Mb/s Gigabit Ethernet (RJ45) PoE+ (Type 2) 4 x 10Gb SFP+
Layer Services Supported	Layer 2 Support
Supported Protocols	Auto-MDIX/MDI Auto-VoIP IGMP Snooping IPv4 IPv6 Link Aggregation Port Mirroring SNMPv1 SNMPv2c SNMPv3
Queuing	Strict Priority, Weighted Round Robin (WRR)
Jumbo Frames Support	9216 Bytes
MAC Address Table Size	16K
Security Features	DHCP Snooping DoS Attack Prevention RADIUS Authentication Storm Control
Access Control List	50
Standards	802.1ab, 802.1d, 802.1s, 802.1w, 802.1x, 802.2az, 802.3, 802.3ab, 802.3ad, 802.3af, 802.3at, 802.3p, 802.3q, 802.3u, 802.3x, 802.3z
Latency	4.7 µs
Forwarding Rate	95.23 Mpps
Switching Bandwidth	128 Gb/s
Priority Queues	4
Packet Buffer	64 B
Flash Memory	256 MB
RAM Buffer	1.5 MB per Device
CPU	Single-Core: Up to 800 MHz Cortex A9
Power	Power Draw : 234.00 W (Max) 19.3 W (Idle) AC Input Power : 100 to 240 VAC, 50 / 60 Hz at 1.3 to 2.6 A PoE Power Budget : 195 W PoE per Port : 30 W Power Supply Type : Internal
Cooling System	Fan
Special Features	24 x Gigabit Ethernet Ports 24 x PoE+ Compliant Ports 4 x 10Gb SFP+ Ports 128 Gb/s Switching Capacity 95.23 Mpps Forwarding Capacity 800 MHz ARM Cortex-A9 Processor 512MB RAM Rack-Mountable Design 195W Power Budget Built-In Security Features
Dimensions	17.42 x 10.42 x 1.73" / 44.25 x 26.47 x 4.39 cm
Weight	7.72 lb / 3.5 kg
Warranty	1 Year ( As per Manufacturer Policy )

Aruba Instant On 1930 24G Class4 PoE 4SFP/SFP+ 195W Switch
