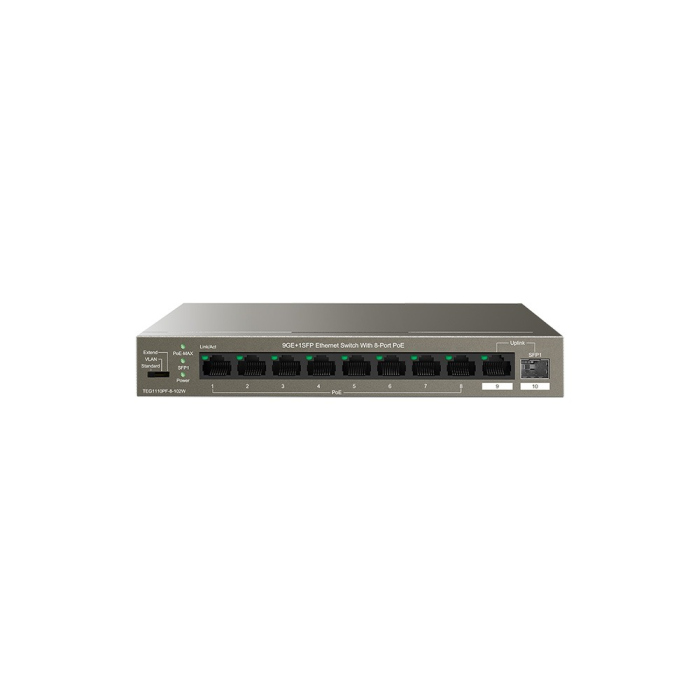

Model No | TENDA 9-Port Gigabit Desktop Switch with 8-Port PoE |
Part No | TEG1110PF-8-102W |
Color | Brown |
Network standards | IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3afIEEE 802.3at |
LED Indicator | 10* Link/Ack LED indicators1 * Power LED indicator |
Interfaces | 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)1 * 10/100/1000 Mbps Base-T Ethernet port (Data)1 * 100/1000 Mbps Base-X SFP port |
Transmission media | Recommended: CAT5/5e UTP or better |
Dimension | 177.5mmx104.0mmx26.0mm(L*W*H) |
Level of protection | Lightning protection for ports: 6KVLightning protection for power: 6KVESD:Air discharge: ±10kVContact discharge: ±8kV |
Forwarding mode | Store-and-forward |
Switch capacity | 20 Gbps |
Packet forwarding rate | 14.9Mpps |
Buffer | 2M |
MAC address table | 16K |
PoE budget | Single port: AF: 15.4W, AT: 30WWhole device: 92W |
Input voltage | 100-240V AC 50/60Hz51V /2.0A DC（Power Adapter Output ） |
Mounting | Desktop mounting: supportWall mounting: supportRack mounting : non-support |
Environment | Operating Temperature: 0℃~45℃Storage Temperature: -40℃~70℃Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty | 1 Year (As Per Manufacturer) |
Model No | TENDA 9-Port Gigabit Desktop Switch with 8-Port PoE |
Part No | TEG1110PF-8-102W |
Color | Brown |
Network standards | IEEE 802.3IEEE 802.3uIEEE 802.3abIEEE 802.3xIEEE 802.3afIEEE 802.3at |
LED Indicator | 10* Link/Ack LED indicators1 * Power LED indicator |
Interfaces | 8 * 10/100/1000 Mbps Base-T Ethernet ports (Data/Power)1 * 10/100/1000 Mbps Base-T Ethernet port (Data)1 * 100/1000 Mbps Base-X SFP port |
Transmission media | Recommended: CAT5/5e UTP or better |
Dimension | 177.5mmx104.0mmx26.0mm(L*W*H) |
Level of protection | Lightning protection for ports: 6KVLightning protection for power: 6KVESD:Air discharge: ±10kVContact discharge: ±8kV |
Forwarding mode | Store-and-forward |
Switch capacity | 20 Gbps |
Packet forwarding rate | 14.9Mpps |
Buffer | 2M |
MAC address table | 16K |
PoE budget | Single port: AF: 15.4W, AT: 30WWhole device: 92W |
Input voltage | 100-240V AC 50/60Hz51V /2.0A DC（Power Adapter Output ） |
Mounting | Desktop mounting: supportWall mounting: supportRack mounting : non-support |
Environment | Operating Temperature: 0℃~45℃Storage Temperature: -40℃~70℃Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
Warranty | 1 Year (As Per Manufacturer) |
