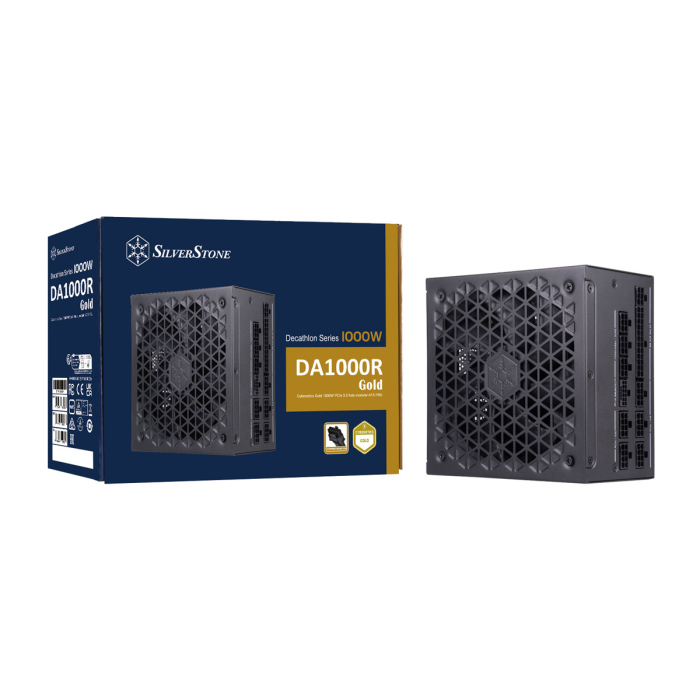

| Model No | Silver Stone Decathlon Series DA1000R Cybenetics Gold 1000W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply |
| Part No | SST-DA1000R-GM |
| Power | 1000W |
| Efficiency Standard | ≥87% & <89% overall efficiency (GOLD) |
| Modularity | Fully Modular |
| Color | Black |
| PSU Form Factor | ATX 3.0 |
| Fan | Ultra silent 135mm FDB fan with semi-fanless function |
| Protection Features | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation |
| Load Range | Output : +3.3V, +5V, +12V, +5VSB, -12V Max.(Amps) : 22A, 22A, 83.5A, 3A, 0.3A Min.(Amps) : 0A Range (%) : ±3%, ±3%, +5/-7%, ±5%, ±5% Line Reg.(%) : ±1% Ripple(mVp-p) : 30mV, 30mV, 70mV, 40mV, 40mV |
| Input Voltage | 90 ~ 264 Vrms |
| Input Frequency Range | 47Hz ~ 63Hz |
| PFC | Active PFC (PF>0.9 at full load) |
| MTBF | 100,000 hours |
| Special Features | Equipped with Gen5 12VHPWR PCIe connector, meeting Intel ATX 3.0 specification standard Cybenetics Gold efficiency certification 24/7 continuous power output with 50℃operating temperature Fully Modular design All Japanese electrolytic capacitors Ultra silent 135mm FDB fan with semi-fanless function |
| Connectors | 1 x 24 / 20-Pin motherboard connector 2 x 8 / 4-Pin EPS / ATX 12V connector 6 x 8 / 6-Pin PCIe connectors 1 x 12+4-Pin 12VHPWR connector 12 x SATA connectors 3 x 4-Pin Peripheral connector 1 x 4-Pin Floppy connector |
| Dimension | 150mm (W) × 86mm (H) × 150mm (D) 5.91" (W) x 3.39" (H) x 5.91" (D) |
| Weight | 2.88 kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
| Model No | Silver Stone Decathlon Series DA1000R Cybenetics Gold 1000W ATX 3.0 & PCIe 5.0 Fully Modular ATX Power Supply |
| Part No | SST-DA1000R-GM |
| Power | 1000W |
| Efficiency Standard | ≥87% & <89% overall efficiency (GOLD) |
| Modularity | Fully Modular |
| Color | Black |
| PSU Form Factor | ATX 3.0 |
| Fan | Ultra silent 135mm FDB fan with semi-fanless function |
| Protection Features | Over Current Protection Over Power Protection Over Voltage Protection Short Circuit Protection Under Voltage Protection Over Temperature Protection No load operation |
| Load Range | Output : +3.3V, +5V, +12V, +5VSB, -12V Max.(Amps) : 22A, 22A, 83.5A, 3A, 0.3A Min.(Amps) : 0A Range (%) : ±3%, ±3%, +5/-7%, ±5%, ±5% Line Reg.(%) : ±1% Ripple(mVp-p) : 30mV, 30mV, 70mV, 40mV كتابة مراجعتك  عميل جديد؟ أبدأ هنا. |
