 | Full Support for High-End Graphics CardsThe Rebel P30 Gold supports the new ATX 3.0 standard and is equipped with a modern PCIe Gen5 12VHPWR connection that is required for current high-end graphics cards and the highest performance. |
Certified Safety and EfficiencyAs its name suggests, the Rebel P30 Gold is 80 PLUS Gold certified, providing at least 90 percent efficiency at 20 percent load, 92 percent efficiency at 50 percent load, and an efficiency of 89 percent at 100 percent load. In addition, both the PSU and the user are safeguarded by all the common protective technology. This encompasses over-current protection, over- and under-voltage protection, short-circuit protection, over-temperature protection and over-power protection. |  |
 | Always Cool and QuietA quiet 135 mm fan with a fluid dynamic bearing is used in the Rebel P30 Gold. For silent operation, the PSU's Zero RPM mode can be selected, allowing the fan rotation to be completely deactivated at moderate loads. To ensure an effective cooling for the hardware, the fan delay mode lets the fan continue to run for up to 60 seconds after the PSU has been shut down. |
High Quality in FocusFor high degrees of reliability and performance, quality all-Japanese capacitors, LLC resonant converters and DC/DC technology are used in the Rebel P30 Gold. Thanks to this, the Rebel P30 Gold always delivers a constant and stable voltage with optimized noise and heat levels. |  |
| Full-Modular AssemblyAll the Rebel P30's cables are modular and can be used as and when they are needed. Apart from a PCIe Gen5 12VHPWR connector, the PSU comes with a total of twelve SATA connectors and four 6+2-pin PCIe connectors. The 1,300-watt model even has up to eight 6+2-pin PCIe connectors. Two IDE connectors and a floppy connector are also available using the included adapters. |

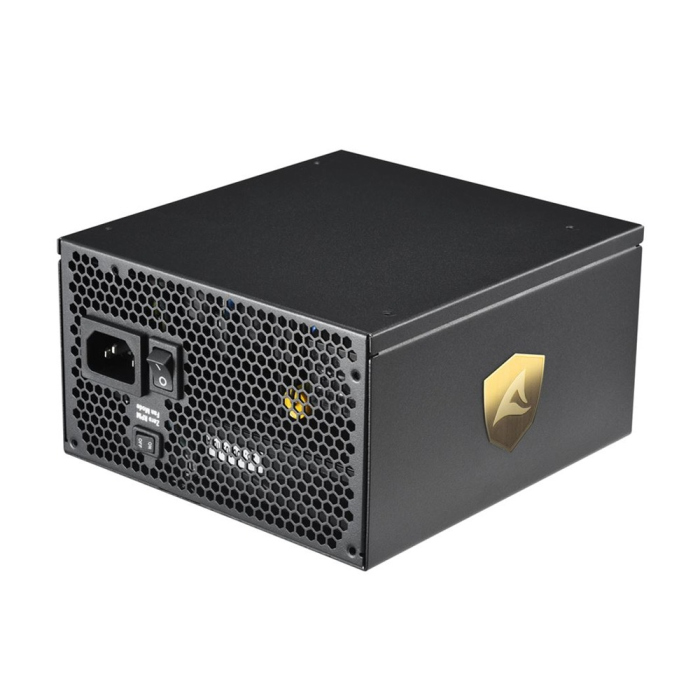

| Model No | Sharkoon Rebal P30 80PLUS Gold 850 Watt Power Supply |
| Part No | P30 850W |
| Power | 850Watt |
| Efficiency Standard | 80PLUS Gold |
| Modularity | Fully Modular |
| Color | Black |
| PSU Form Factor | ATX 3.0 |
| Lighting | Non-RGB |
| Fan Size | 135 mm |
| Protection Features | OCP (Over-Current Protection): ✓ OVP (Over-Voltage Protection): ✓ UVP (Under-Voltage Protection): ✓ SCP (Short-Circuit Protection): ✓ OTP (Over-Temperature Protection): ✓ OPP (Over-Power Protection): ✓ |
| AC Input Range | 100 - 240 VAC |
| Special Features | Designed for performance, the Rebel P30 Gold is a power supply unit that is fully modular and certified with 80 PLUS Gold. With the new ATX 3.0 standard and a PCIe Gen5 12VHPWR connection, it offers full compatibility for high-end graphics cards. In addition, the PSU is supplied with LLC resonant-converter and DC/DC technology and is equipped only with high-quality Japanese capacitors. A quiet 135 mm fan with an intelligent Zero RPM mode provides the cooling as well as a low-noise operation. |
| Connectors | Cable Configuration: Fully Modular Flat Cables: ✓ Maximum Cable Length: 100 cm Length of Mainboard Cable: 62 cm Length of CPU Cable: 73 cm Length of 12VHPWR Cable: 62 cm Length of PCIe Cable: 55 cm + 15 cm Cable Length to First Peripheral: 55 cm 20+4-Pin Mainboard Connector: 1 4+4-Pin CPU Connector: 1 8-Pin CPU Connector: 1 6+2-Pin PCIe Connector: 4 12VHPWR Connector: 1 SATA Connector: 12 IDE Connector: 2 (via Adapter) Floppy Connector: 1 (via Adapter) |
| Package Contents | Power Cord Set of Modular Cables Cable Bag Mounting Screws |
| Dimension | 150 x 160 x 86 mm |
| Weight | 1.7 kg |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
| Full Support for High-End Graphics CardsThe Rebel P30 Gold supports the new ATX 3.0 standard and is equipped with a modern PCIe Gen5 12VHPWR connection that is required for current high-end graphics cards and the highest performance. |
Certified Safety and EfficiencyAs its name suggests, the Rebel P30 Gold is 80 PLUS Gold certified, providing at least 90 percent efficiency at 20 percent load, 92 percent efficiency at 50 percent load, and an efficiency of 89 percent at 100 percent load. In addition, both the PSU and the user are safeguarded by all the common protective technology. This encompasses over-current protection, over- and under-voltage protection, short-circuit protection, over-temperature protection and over-power protection. | |
| Always Cool and QuietA quiet 135 mm fan with a fluid dynamic bearing is used in the Rebel P30 Gold. For silent operation, the PSU's Zero RPM mode can be selected, allowing the fan rotation to be completely deactivated at moderate loads. To ensure an effective cooling for the hardware, the fan delay mode lets the fan continue to run for up to 60 seconds after the PSU has been shut down. |
High Quality in FocusFor high degrees of reliability and performance, quality all-Japanese capacitors, LLC resonant converters and DC/DC technology are used in the Rebel P30 Gold. Thanks to this, the Rebel P30 Gold always delivers a constant and stable voltage with optimized noise and heat levels. | |
| Full-Modular AssemblyAll the Rebel P30's cables are modular and can be used as and when they are needed. Apart from a PCIe Gen5 12VHPWR connector, the PSU comes with a total of twelve SATA connectors and four 6+2-pin PCIe connectors. The 1,300-watt model even has up to eight 6+2-pin PCIe connectors. Two IDE connectors and a floppy connector are also available using the included adapters. |
