Support for Latest Intel® ProcessorsThe B760M-P is engineered for the LGA 1700 socket. This motherboard is compatible with 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, offering reliable support for modern desktop platforms. Next-Gen DDR5 Memory PerformanceWith support for up to 256GB of DDR5 RAM across four DIMM slots and speeds reaching 6800+ MHz (OC), users benefit from faster bandwidth and improved multitasking in both business and productivity environments. PCIe 4.0 Graphics and Dual M.2 SlotsA full PCIe 4.0 x16 slot enables compatibility with modern GPUs, while dual M.2 slots (including one PCIe 4.0 x4) deliver fast NVMe storage performance for quicker boot times and seamless application load speeds. |  |
 | Enhanced Power Design with Core BoostFeaturing a high-quality VRM design and MSI’s proprietary Core Boost technology, this board ensures clean and efficient power delivery, supporting stable CPU performance under heavy loads. Comprehensive Display OutputSupports multiple monitor configurations with HDMI, DisplayPort, and legacy VGA outputs, delivering crisp visuals and compatibility with both modern and traditional display setups—ideal for office or hybrid environments. Reliable Networking and AudioEquipped with a Realtek Gigabit LAN controller for stable wired connections and powered by the Realtek ALC897 7.1-channel audio codec with Audio Boost for clear, immersive sound. |
Storage Versatility with RAID SupportThis MotherBoard Includes four SATA III 6Gb/s ports and dual M.2 slots with RAID 0/1/5/10 support, allowing for flexible, high-performance storage configurations to match your workflow. Extensive Internal ConnectivityFeatures essential internal headers such as USB 3.2 Gen 1, USB 2.0, TPM, COM, and RGB headers. Diagnostic EZ Debug LEDs simplify system troubleshooting and assembly. Compact, Durable Micro-ATX Form FactorThe compact mATX layout balances performance and space efficiency. Reinforced PCIe slots (Steel Armor) and M.2 Shielding ensure longevity and mechanical stability in professional builds. |  |

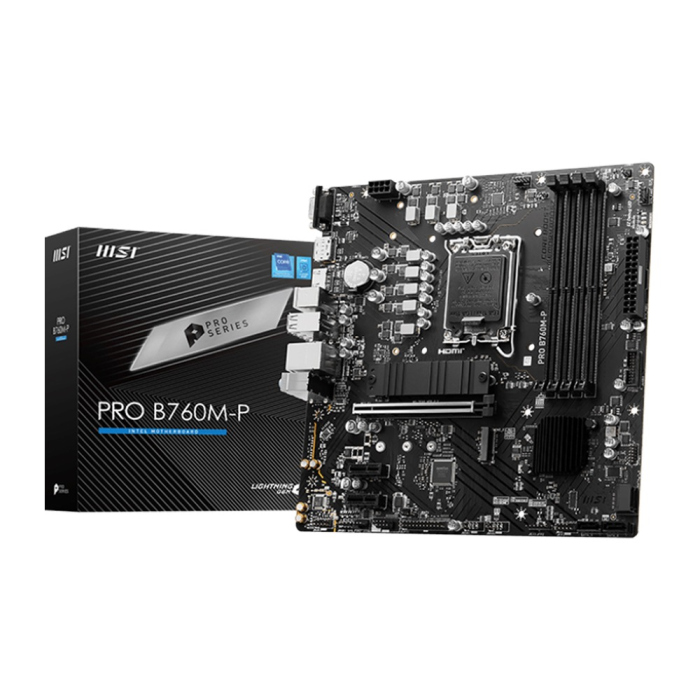

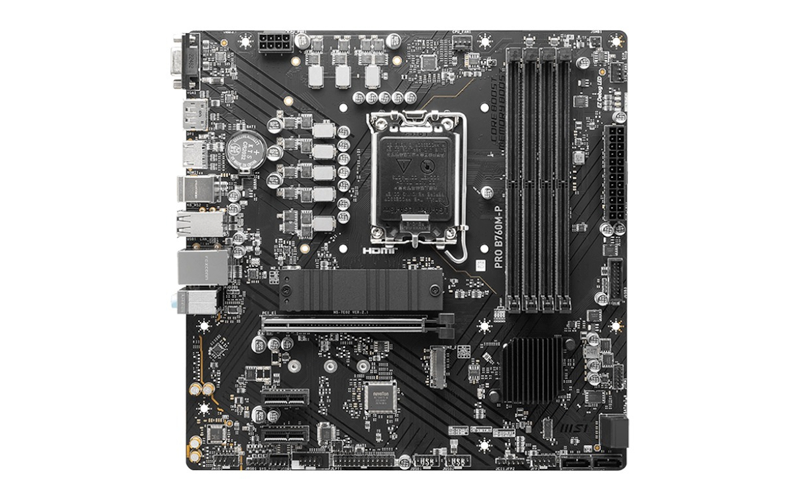

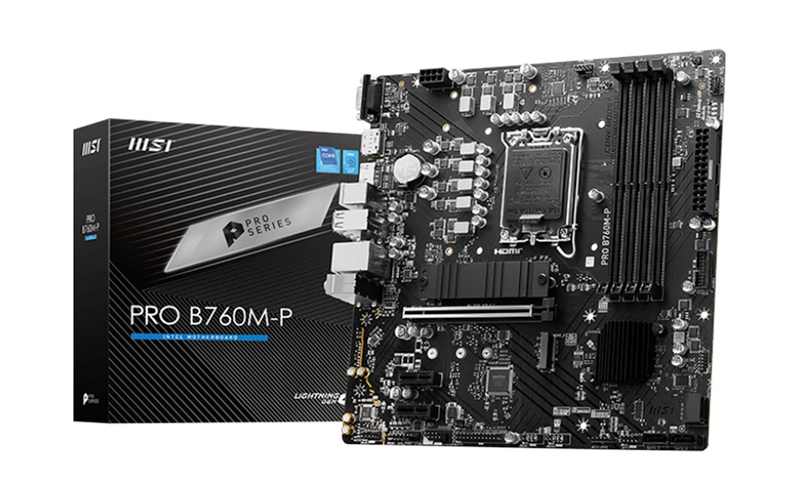

| Model No | MSI Intel PRO B760M-P DDR5 MotherBoard |
| Part No | 911-7E02-026 |
| Chipset | INTEL B760 |
| Form Factor | mATX |
| Socket Compatibility | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors LGA 1700 |
| Wireless & Bluetooth | No |
| LAN | Realtek® RTL8111H Gigabit LAN |
| Memroy Type | 4x DDR5, Maximum Memory Capacity 256GB Memory Support DDR5 6800+(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz Max. overclocking frequency: • 1DPC 1R Max speed up to 6800+ MHz • 1DPC 2R Max speed up to 6400+ MHz • 2DPC 1R Max speed up to 6000+ MHz • 2DPC 2R Max speed up to 5600+ MHz Supports Intel® XMP 3.0 OC Supports Dual-Controller Dual-Channel mode Supports non-ECC, un-buffered memory |
| Onboard Graphics | 1x HDMI™ Support HDMI™ 1.4, maximum resolution of 4K 30Hz* 1x DisplayPort Support DP 1.4, maximum resolution of 4K 60Hz* 1x VGA Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz *Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed. |
| Storage Compatibility | 2x M.2 M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices 4x SATA 6G * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_2 slot. |

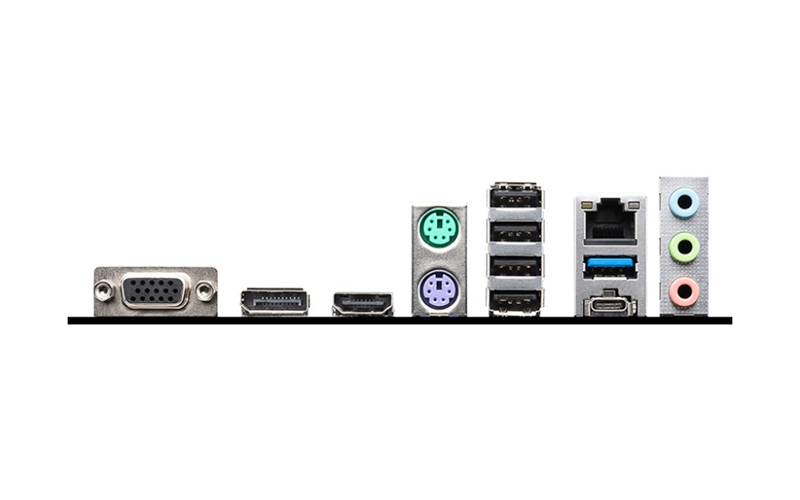

| Back Panel I/O Ports | VGA DisplayPort HDMI™ Keyboard / Mouse USB 2.0 LAN port Audio Connectors USB 3.2 Gen 1 5Gbps (Type-A) USB 3.2 Gen 2 10Gbps (Type-C) |
| USB Ports Front (Support ) | 4x USB 2.0 (Rear) 4x USB 2.0 (Front) 1x USB 5Gbps Type A (Rear) 2x USB 5Gbps Type A (Front) 1x USB 10Gbps Type C (Rear) |
| Expansion Slots | 1x PCI-E x16 slot 2x PCI-E x1 slot PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU) PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset) PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset) |
| Audio | Realtek® ALC897 Codec 7.1-Channel High Definition Audio |
| Internal I/O Connectors | 1x Power Connector(ATX_PWR) 1x Power Connector(CPU_PWR) 1x CPU Fan 2x System Fan 2x Front Panel (JFP) 1x Chassis Intrusion (JCI) 1x Front Audio (JAUD) 1x Printer Port (JLPT) 1x Com Port (JCOM) 1x RGB LED connector(JRGB) 1x TPM pin header(Support TPM 2.0) 4x USB 2.0 ports 2x USB 5Gbps Type A ports |
| Special Features | Support Intel® Core™ 14th/ 13th/ 12th Gen Processors, Intel® Pentium® Gold and Celeron® Processors for LGA 1700 socket Supports DDR5 Memory, Dual Channel DDR5 6800+MHz (OC) Core Boost : With premium layout and digital power design to support more cores and provide better performance Memory Boost: Advanced technology to deliver pure data signals for the best performance, stability and compatibility Lightning Fast Experience: PCIe 4.0, Lightning Gen4 x4 M.2 with M.2 Shield Frozr AUDIO BOOST: Reward your ears with studio grade sound quality for the most immersive gaming experience Steel Armor: Protecting VGA cards against bending and EMI for better performance, stability and strength |
| Product Size ( Dimension ) | 243.84mmx304.8mm |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
Support for Latest Intel® ProcessorsThe B760M-P is engineered for the LGA 1700 socket. This motherboard is compatible with 12th, 13th, and 14th Gen Intel® Core™, Pentium® Gold, and Celeron® processors, offering reliable support for modern desktop platforms. Next-Gen DDR5 Memory PerformanceWith support for up to 256GB of DDR5 RAM across four DIMM slots and speeds reaching 6800+ MHz (OC), users benefit from faster bandwidth and improved multitasking in both business and productivity environments. PCIe 4.0 Graphics and Dual M.2 SlotsA full PCIe 4.0 x16 slot enables compatibility with modern GPUs, while dual M.2 slots (including one PCIe 4.0 x4) deliver fast NVMe storage performance for quicker boot times and seamless application load speeds. | |
| Enhanced Power Design with Core BoostFeaturing a high-quality VRM design and MSI’s proprietary Core Boost technology, this board ensures clean and efficient power delivery, supporting stable CPU performance under heavy loads. Comprehensive Display OutputSupports multiple monitor configurations with HDMI, DisplayPort, and legacy VGA outputs, delivering crisp visuals and compatibility with both modern and traditional display setups—ideal for office or hybrid environments. Reliable Networking and AudioEquipped with a Realtek Gigabit LAN controller for stable wired connections and powered by the Realtek ALC897 7.1-channel audio codec with Audio Boost for clear, immersive sound. |
Storage Versatility with RAID SupportThis MotherBoard Includes four SATA III 6Gb/s ports and dual M.2 slots with RAID 0/1/5/10 support, allowing for flexible, high-performance storage configurations to match your workflow. Extensive Internal ConnectivityFeatures essential internal headers such as USB 3.2 Gen 1, USB 2.0, TPM, COM, and RGB headers. Diagnostic EZ Debug LEDs simplify system troubleshooting and assembly. Compact, Durable Micro-ATX Form FactorThe compact mATX layout balances performance and space efficiency. Reinforced PCIe slots (Steel Armor) and M.2 Shielding ensure longevity and mechanical stability in professional builds. | |
