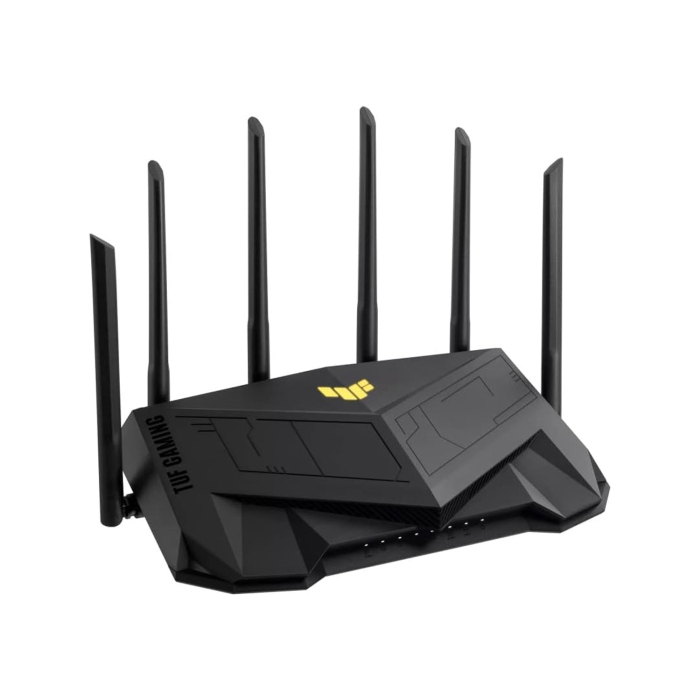

| Model No | Asus Tuf Gaming Wifi 6 AX6000 Extendable Router |
| Part No | 90IG07X0-MU9C00 |
| Network Standard | IPv6 IPv4 WiFi 6 (802.11ax) WiFi 5 (802.11ac) WiFi 4 (802.11n) IEEE 802.11g IEEE 802.11b IEEE 802.11a |
| Product Segment | AX6000 ultimate AX performance : 1148+4804 Mbps |
| WiFi Data Rate | WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps WiFi 6 (802.11ax) (2.4GHz) : up to 1148 Mbps 802.11g : up to 54 Mbps 802.11b : up to 11 Mbps 802.11a : up to 54 Mbps |
| Antenna | External antenna x 6 |
| Transmit/Receive | 5GHz 4x4 2.4GHz 4x4 |
| Processor | 2.0 GHz quad-core processor |
| Memory | 256 MB Flash 512 MB RAM |
| Boosts speed | OFDMA (Orthogonal Frequency Division Multiple Access) Beamforming: standard-based and universal 1024-QAM high data rate 20/40/80/160 MHz bandwidth |
| Operating Frequency | 2.4GHz / 5GHz |
| Operating Mode | Wireless router mode Access point mode Media bridge mode |
| Ports | RJ45 for 2.5 Gigabits BaseT for WAN x 1, RJ45 for 2.5 Gigabits BaseT for LAN x 1, RJ45 for Gigabits BaseT for LAN x 4, USB 3.2 Gen 1 x 1, |
| Button | WPS Button, Reset Button, Power Button |
| LED Indicator | Power x 1 WiFi x 1 1G LAN x 4 2.5G WAN x 1 2.5G LAN x 1 |
| Power Supply | AC Input : 100V~240V (50~60Hz) DC Output : 12 V with max. 2.5 A current |
| AiMesh | • AiMesh Node • Primary AiMesh Router AiMesh |
| Game | Mobile Game Mode Game Boost / Acceleration |
| Parental Control | Safe Browsing Customized Internet Schedule "Allow you to block access to unwanted websites and apps." |
| Guest Network | Guest Network Connection Time Limit "The Guest Network provides Internet connection for guests but restricts access to your local network." • Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3 |
| AiProtection | • Infected Device Prevention and Blocking • Two-Way IPS • Malicious Site Blocking • Router Security Assessment |
| Security | DNS-over-TLS Security Scan SSH Firewall Let's Encrypt WPS AiProtection WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise • Maximum Firewall Keyword Filter : 64 • Maximum Firewall Network Service Filter : 32 • Maximum Firewall URL Filter : 64 |
| Wireless | RADIUS Client Explicit Beamforming Universal Beamforming Airtime Fairness Wireless Scheduler WiFi MAC Address Filter UTF-8 SSID • Maximum MAC Filters : 64 |
| WAN | DDNS DMZ Port triggering Port forwarding 3G / 4G LTE dongle WAN Aggregation Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP • Maximum Port Forwarding Rule : 64 • Maximum Port Triggering Rule : 32 NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay |
| LAN | Manually Assign IP Address Wake on LAN (WOL) LAN Link Aggregation IPTV IGMP Snooping DHCP Server • Maximum Manually Assign IP Address Rule : 64 |
| VPN | VPN Client WireGuard VPN Server WireGuard VPN Fusion VPN Server PPTP VPN Server Open VPN VPN Server IPSec VPN Client PPTP VPN Client Open VPN VPN Client L2TP |
| USB application | Samba Server Shared Folder Privileges FTP Server Time Machine Media Server AiDisk Download Master AiCloud Safely Remove Disk File System : HFS+, NTFS, vFAT, ext2, ext3, ext4 |
| Administration | New Device Connect Notification Login Captcha Connection Diagnosis Auto Firmware Update Configuration Backup and Restore Diagnosis tools Feedback System System Log |
| Dimension | 301.02 x 174 x 216 mm |
| Weight | 696g |
| Package content | TUF Gaming AX6000 Dual Band WiFi 6 router RJ-45 cable Power adapter Quick Start Guide Warranty card |
| Warranty | 1 Year ( As per Manufacturer Policy ) |
